Lab-Volt / LabVolt 9450-00 BPSK Modulator for Digital Communications Training Systems - Training / Education
sku127941 — low stock
Request a Quote
By Lab-Volt
<p>The BPSK Modulator converts TTL data to Binary Phase Shift Keyed (BPSK) signals. BPSK is used extensively in high-speed data transmission. Using the BPSK Modulator, students gain an understanding of the BPSK modulation process, as well as data rate limitations of a BPSK system. Specificatio…
Description

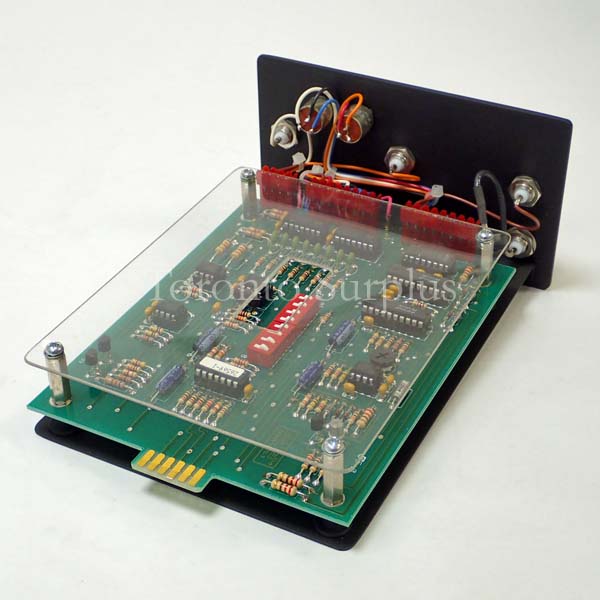

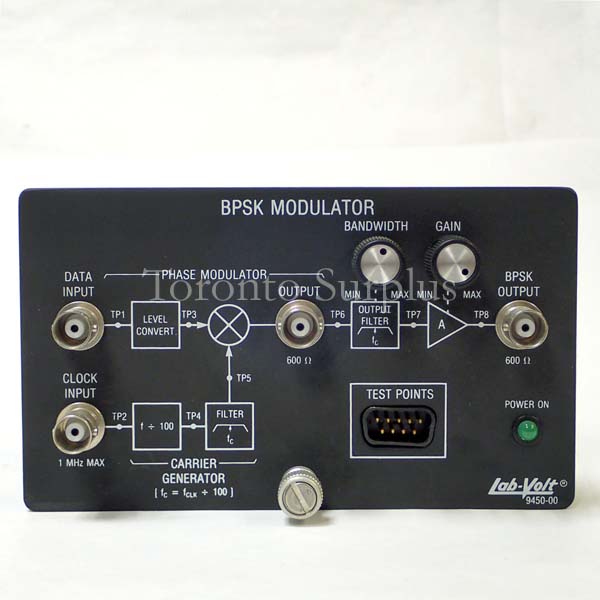

<p>The BPSK Modulator converts TTL data to Binary Phase Shift Keyed (BPSK) signals. BPSK is used extensively in high-speed data transmission. Using the BPSK Modulator, students gain an understanding of the BPSK modulation process, as well as data rate limitations of a BPSK system.
Specifications
Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)
Data Input
Voltage: TTL
Maximal Data Rate: 9600 Bd
Clock Input
Voltage: TTL
Maximal Frequency: 1 MHz
Outputs: Phase Modulator BPSK
BPSK Output
Maximal Voltage: 2 V p-p
Impedance: 600 Ω
Fault-Insertion Switches: 8
Test Points: 8
Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.7 kg (1.5 lb)</p>
