Lab-Volt / LabVolt 9445-00 PCM Decoder for Digital Communications Training Systems - Training / Education

Description

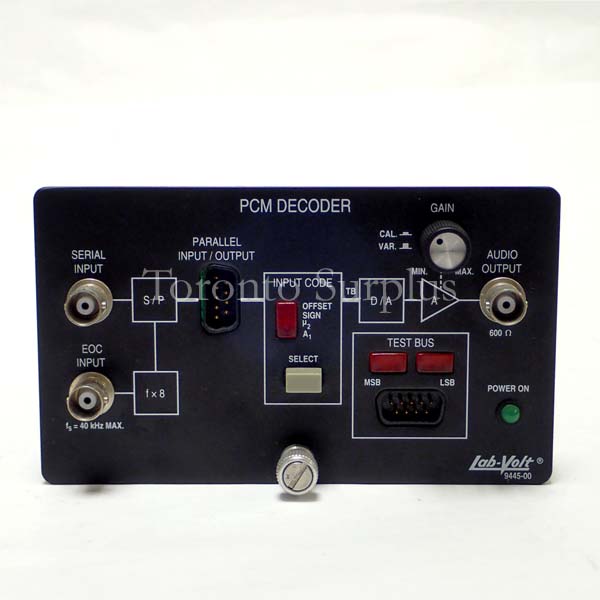

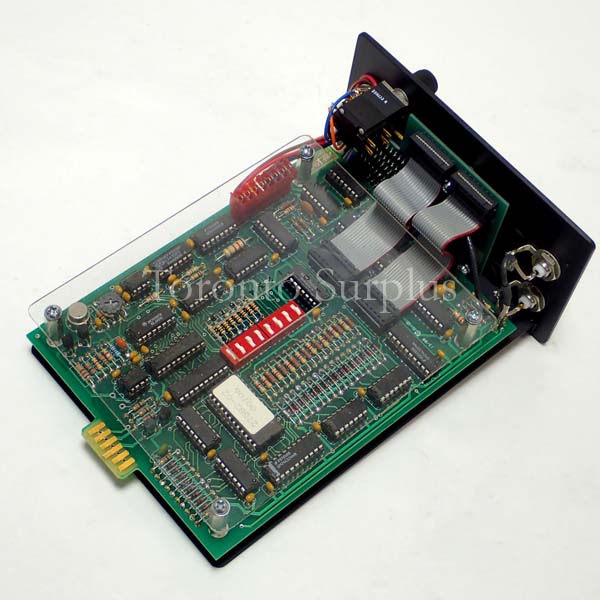

<p>The PCM Decoder is used to demodulate a serial PCM signal generated by the PCM Encoder, or a parallel PCM signal generated by either the PCM Encoder or the DPCM Decoder, and to recover the original analog signal. A bar graph indicator for the test bus shows the logic states of the 8-bit D/A converter input. Using the PCM Decoder, students gain familiarity with PCM decoding and D/A conversion processes. The effects of compression and expansion on weak and strong signals can be investigated also.

Specifications

Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)

PCM Input Voltage: TTL

Input Codes</p><ul><li>Offset Binary</li><li>Sign Offset</li><li>μ2-Type Expansion</li><li>A1-Type Expansion</li></ul> <p>Audio Output</p><ul><li>Nominal Voltage: 2 V p-p (gain control at CAL position)</li><li>Maximal Voltage: 10 V p-p</li><li>Impedance: 600 Ω</li><li>Frequency Range: 300 Hz to 5 kHz</li></ul> <p>Fault-Insertion Switches: 8
Test Bus: 1

Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.8 kg (1.8 lb)</p>
