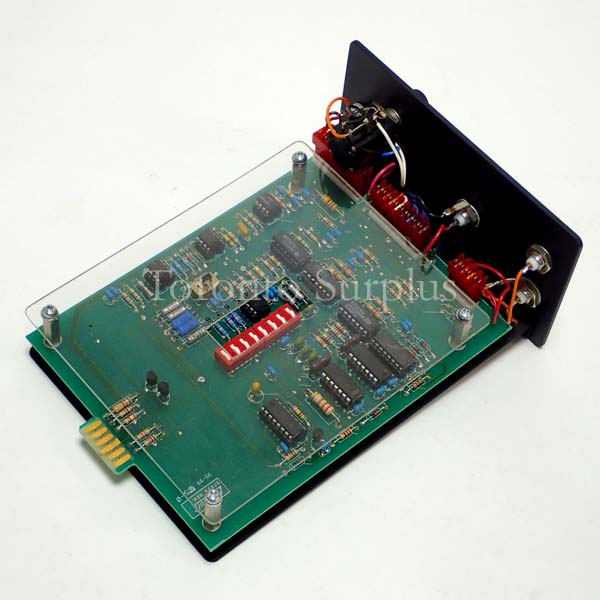

Lab-Volt / LabVolt 9443-00 PWM/PPM Receiver for Digital Communications Training Systems - Training / Education

Description

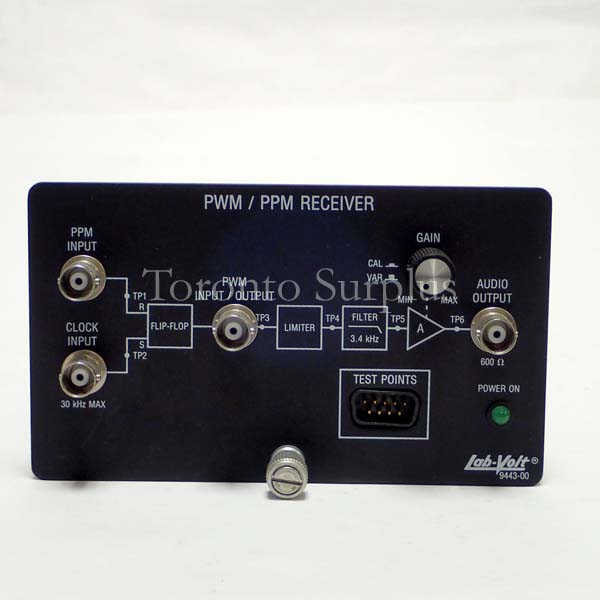

<p>The PWM/PPM Receiver is part of the 13 digital communications instructional modules that offer superior training in Telecommunications technology. It demodulates PWM or PPM signals from the PWM/PPM Generator to reconstruct the original analog signal.&#160; Using the PWM/PPM Receiver, students become familiar with the PWM / PPM decoding process. The relationship between PWM and PPM is easily demonstrated.

Specifications

Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)

PWM / PPM Inputs
Voltage: TTL

Clock Input
Voltage: TTL
Maximal Frequency: 20 kHz

Audio Output
Nominal Voltage: 2 V p-p (gain control at CAL position)
Maximal Voltage: 10 V p-p
Impedance: 600 Ω
Frequency Range: 300 Hz to 3.4 kHz

Fault-Insertion Switches: 8

Test Points: 6

Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.8 kg (1.8 lb)</p>
