Lab-Volt / LabVolt 9427-00 Synchronous Audio Generator for Digital Communications Training Systems - Training / Education
sku128041 — low stock
Request a Quote
By Lab-Volt
<p>The Synchronous Audio Generator provides a triangle-wave audio signal that is synchronized to the system clock and enables PAM, PWM, PPM, and PCM signals throughout the system to be observed easily. The audio signal is derived from the clock input signal using a frequency divider and an integ…
Description

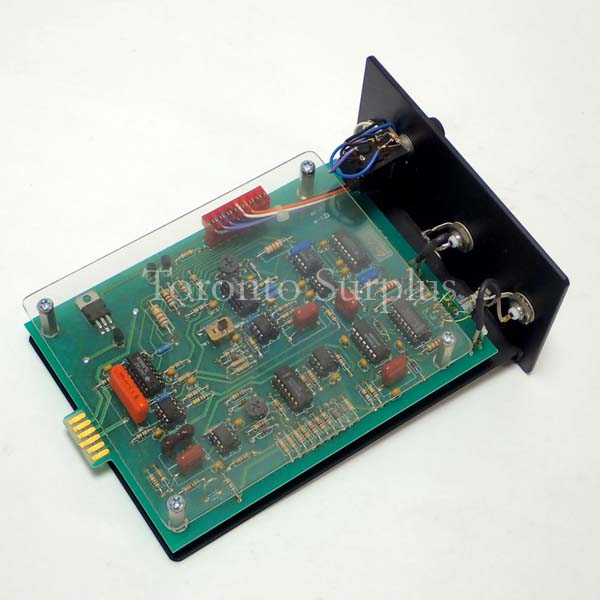

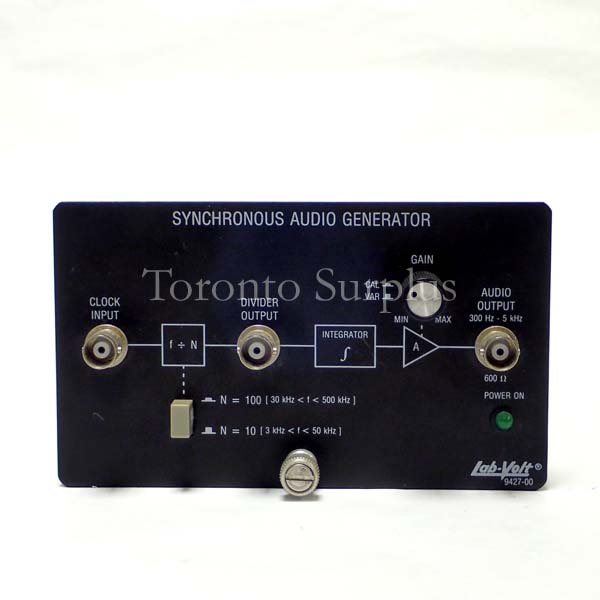

<p>The Synchronous Audio Generator provides a triangle-wave audio signal that is synchronized to the system clock and enables PAM, PWM, PPM, and PCM signals throughout the system to be observed easily. The audio signal is derived from the clock input signal using a frequency divider and an integrator. An automatic gain control circuit ensures a stable output level as frequency is varied.
Specifications
Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)
Clock Input
Maximal Frequency: 500 kHz
Frequency Division: 10 (3 kHz to 50 kHz) / 100 (30 kHz to 500 kHz)
Audio Output
Nominal Voltage: 2 V p-p (gain control at CAL position)
Maximal Voltage: 10 V p-p
Impedance: 600 Ω
Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.7 kg (1.5 lb)</p>
