Lab-Volt 9029-00 Chopper / Inverter Control Unit Tested

Description

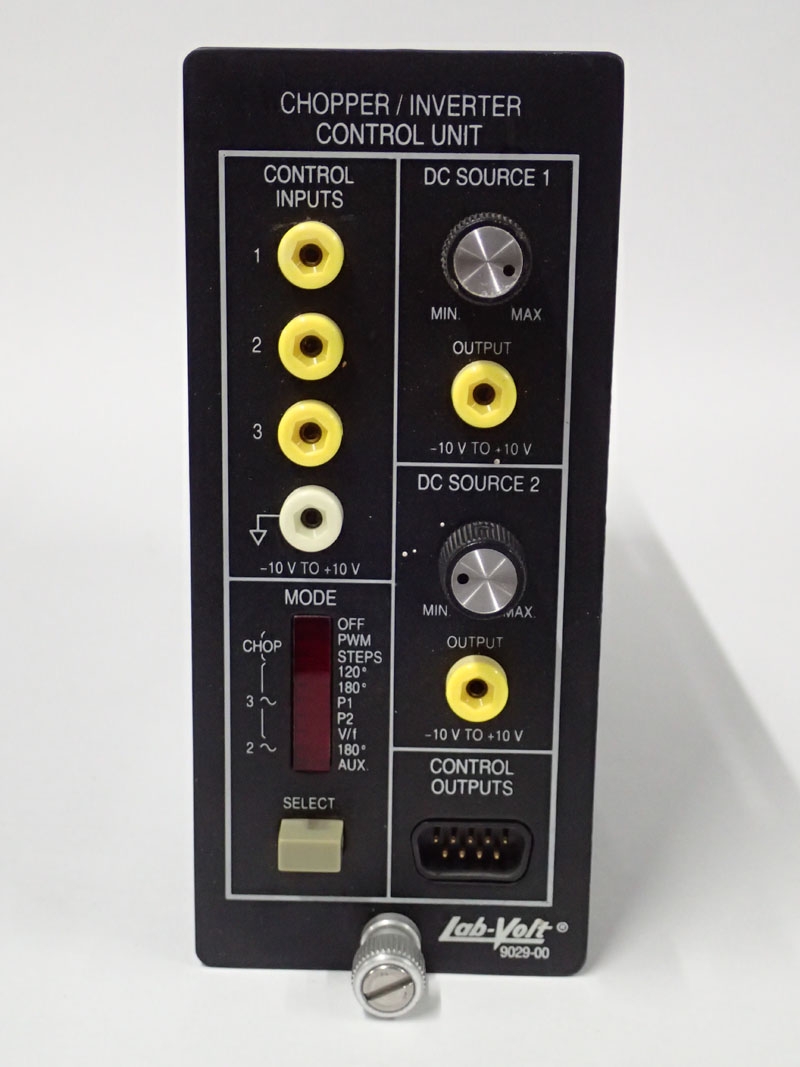

The Chopper / Inverter Control Unit is a plug-in control module designed for the control of IGBT Chopper/ inverter or power MOSFETs in power converter circuits. It generates six 0-5 V pulse signals brought out to a 9 pin socket on the front panel. These control signals can be routed to the IGBT Chopper/Inverter, Models 8837, through the use of an included mating 9-pin cable. Various control modes are selectable on the front panel depending on the type of power converter circuit to be controlled (PWM chopper, three-phase inverter with 120° modulation, etc.) Each mode’s parameters are set by low-level dc signals applied at the control inputs. Two variable dc sources on the front panel can be used to produce these control signals. Cosmetic Notes: Minor scuffing and dust on outer frame, cosmetic in nature, see pictures. We have more than one, so you may not get the exact item pictured, but they are all in similar cosmetic condition. If you would like to receive pictures of the exact unit/units you will receive please send us a request. Testing and Functional Notes: This item is TESTED & WORKING, as pictured. See above for any additional notes. Specifications: Control Inputs Number of Sources - 3 Level - -10 to +10 V Input Impedance - 1 MΩ DC Source Number of Inputs - 2 Voltage Range -10 to +10 V Output Impedance 1kΩ Control Outputs Number of Output Signals - 7 Level - 0-5 V (TTL compatible) Frequency Range Inverter Modes - 127-0-127 Hz Frequency Range Chopper Modes - 100Hz- 2kHz Output Impedance - 300Ω Cosmetic Notes: Minor scuffing and dust on outer frame, cosmetic in nature, see pictures. We have more than one, so you may not get the exact item pictured, but they are all in similar cosmetic condition. If you would like to receive pictures of the exact unit/units you will receive please send us a request. Testing and Functional Notes: This item is TESTED & WORKING, as pictured. See above for any additional notes.
