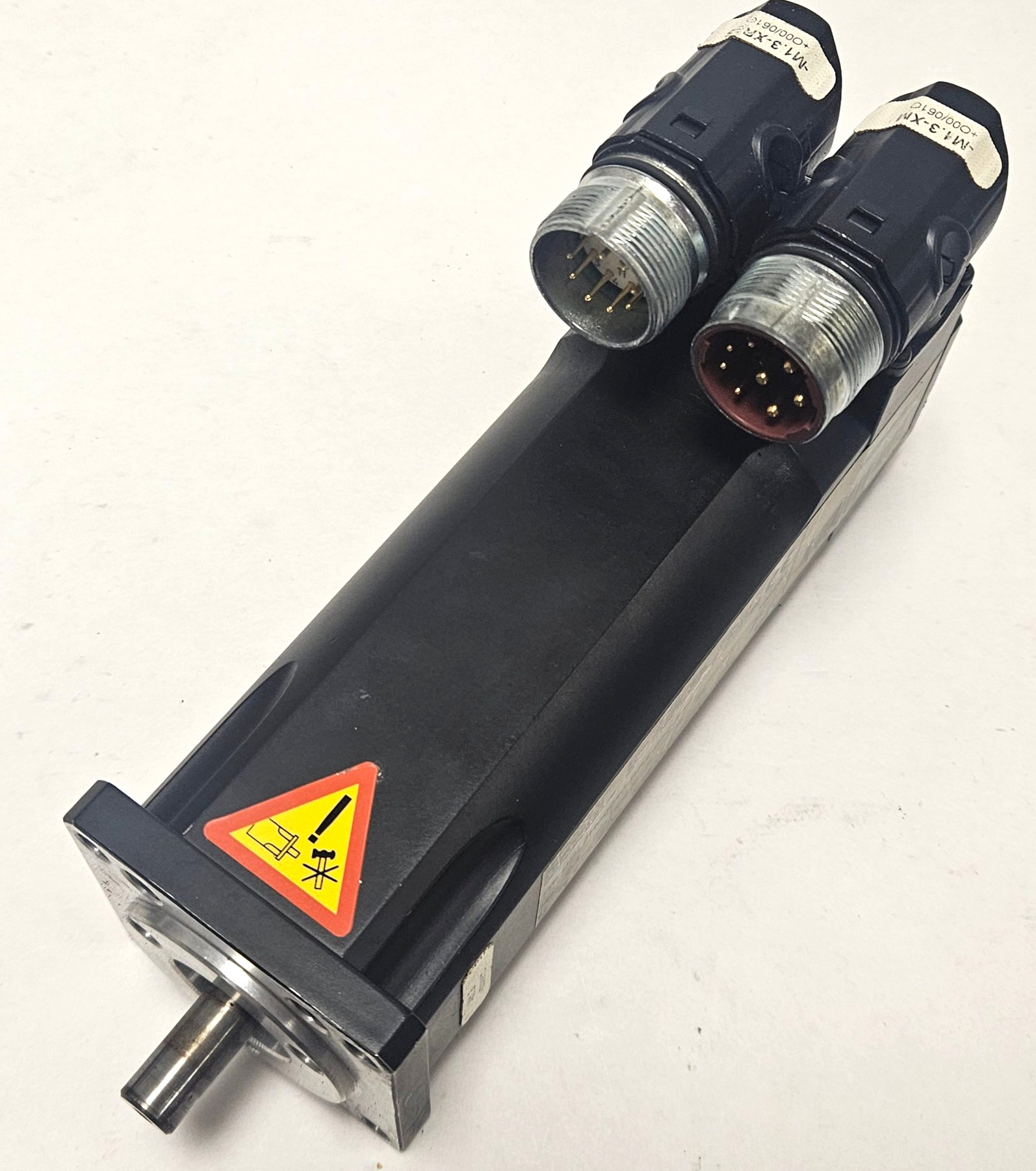

Kollmorgen / Danaher Motion GmbH DBL2H00040-BR2-000-S40 Brushless Servo Motor

Technical Specifications • Type: Brushless DC synchronous servomotor (DBL Synchronous series) • Manufacturer: Kollmorgen / Danaher Motion • Rated Power / Nominal Power (\(P_{n}\)): 0.22 kW (approx. 0.17 kW–0.22 kW depending on rating specs) • Rated Voltage: 400 V – 480 V • Rated Current: 0.9 A • Rated Speed (\(N_{n}\)): 6000 RPM • Holding Torque (\(M_{o}\)): 0.4 Nm • Feedback: Standard Resolver • Brake: Includes a holding brake (indicated by the BR2 designation) • Protection Rating: IP64 / IP65 industrial dust and moisture protection • Insulation Class: Class F
