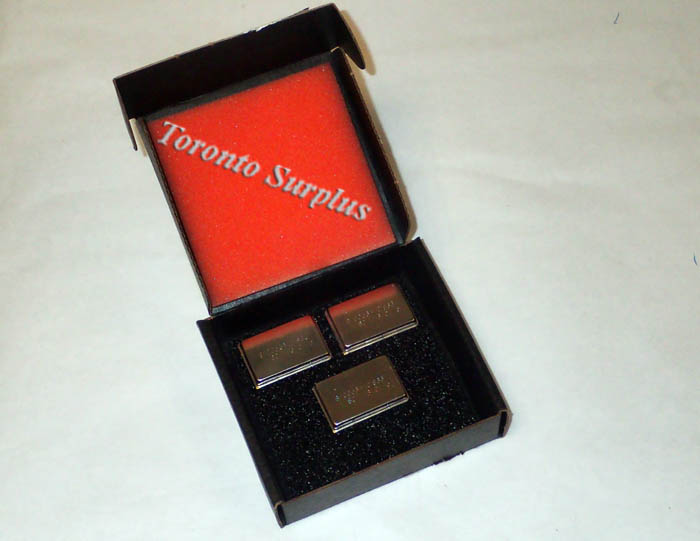

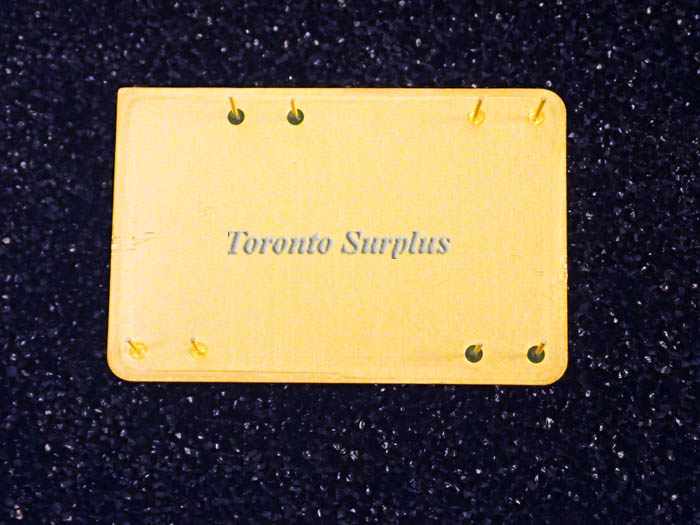

IDT SF0036BA01866T Video / Sound Filter, 36.75MHz BNIB / NOS
sku115829 in stock
Request a Quote
By IDT
<p> These SAW (surface acoustic wave) VSB (Vestigial Sideband Filters) filters address the needs of broadcast and cable TV applications. These VSB filters (VSFs) are designed for television signal IF (intermediate frequency) filtering, with some models providing high suppression of the audio ca…
Description
<p> These SAW (surface acoustic wave) VSB (Vestigial Sideband Filters) filters address the needs of broadcast
and cable TV applications. These VSB filters (VSFs) are designed for television signal IF (intermediate
frequency) filtering, with some models providing high suppression of the audio carrier while other models
pass the audio carrier without attenuation. The excellent linear phase characteristics and low group
delay ripple of these VSFs yield superior 2T and 20T pulse performance. These SAW VSFs provide superior
in-band performance while maintaining high rejection of adjacent channels</p><p>APPLICATIONS
•CATV (Cable TV) Headend Modulators/Combiners
• Television Transmitters/LPTV
• HDTV IF processing
• Satellite and terrestrial distribution
• Broadcast/CATV systems
• Adjacent channel suppression</p><p>FEATURES
• Exceptionally low amplitude and group delay ripple
• Worldwide broadcast standards supported
• Available at standard video intermediate frequencies</p>
and cable TV applications. These VSB filters (VSFs) are designed for television signal IF (intermediate
frequency) filtering, with some models providing high suppression of the audio carrier while other models
pass the audio carrier without attenuation. The excellent linear phase characteristics and low group
delay ripple of these VSFs yield superior 2T and 20T pulse performance. These SAW VSFs provide superior
in-band performance while maintaining high rejection of adjacent channels</p><p>APPLICATIONS
•CATV (Cable TV) Headend Modulators/Combiners
• Television Transmitters/LPTV
• HDTV IF processing
• Satellite and terrestrial distribution
• Broadcast/CATV systems
• Adjacent channel suppression</p><p>FEATURES
• Exceptionally low amplitude and group delay ripple
• Worldwide broadcast standards supported
• Available at standard video intermediate frequencies</p>
