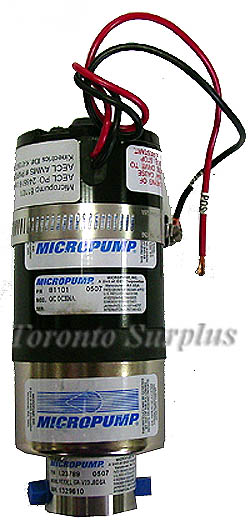

Idex Micropump GA-V23.J8DSA GA Series Magnetic Drive Gear Pump Head with DC-306.A DC Brush Type Permanent Magnet Drive rm

Description

<p><span style="font-size: small;">The GA Series high-performance pumps provide precise and pulseless flows from as low as 1 ml/min. Featuring Micropump's patented suction-shoe design, GA Series pumps self-compensate for wear, ensuring near zero slip and a longer pump life. Once started the pump should prime if it has not already been filled with fluid. If the pump fails to prime, stop the pump and fill the pump head with liquid.


DC Brush Drives for the popular GA, GB, and GJ series pumps. This variety enables our products to fit a broad range of low-flow applications. The small footprint of the "C" mount motors designed for Series GA "C" mount pumpheads allows for a very small package size. This drive is 24 VDC and has the ability to vary the speed by adjusting the supplied voltage. All Micropump DC Brush Drives are RoHS compliant.

GA-V23.J8DSA Magnetic Drive Gear Pump
</span></p><p><span style="font-size: small;">Model: GA-V23.J8DSA
P/N L23789
</span></p><ul><li><span style="font-size: small;">G = Product Type;&#160; Gear Pump</span></li><li><span style="font-size: small;">A = Product Series; Series GA, 21 Bar (300 psi) Max System Pressure (MAWP), 1/8-27 (F) NPT Side Ports
</span></li><li><span style="font-size: small;">- = Modifier; Standard Design
</span></li><li><span style="font-size: small;">V23 = Gear Set Displacement Range 0.084 mL/rev
</span></li><li><span style="font-size: small;">J8 = Gear Material; PEEK-Pin Drive, Max Differential Pressure 2.8 Bar (40 psi), Fluid Temp Range -46/177degC (-50/350degF)
</span></li><li><span style="font-size: small;">D = Static Seals; EP Temp Range -46/149degC (-50/300degF)
</span></li><li><span style="font-size: small;">S = Base Materials; SS316
</span></li><li><span style="font-size: small;">A = Drive Mount; MP Housing, Max System Pressure (MAWP) 21 Bar (300 psi)
</span></li><li><span style="font-size: small;">Flow Rate @3450 RPM: 0.290 L/min (0.077 gpm)
</span></li><li><span style="font-size: small;">Flow Rate @2850 RPM: 0.245 L/min (0.065 gpm)
</span></li><li><span style="font-size: small;">Max Speed: 8000 rpm
</span></li><li><span style="font-size: small;">Viscosity Range: 0.2-1500 centipoise
</span></li><li><span style="font-size: small;">Weight (Pumphead only) 0.34kg (0.75 lbs)
</span></li></ul><p><span style="font-size: small;">
DC306A 81101 DC Brush Type Permanent Magnet Drive
</span></p><ul><li><span style="font-size: small;">DC = DC Brush Type Permanent Magnet Drive</span></li><li><span style="font-size: small;">306 = Model
</span></li><li><span style="font-size: small;">A = Mount Code
</span></li><li><span style="font-size: small;">Drive Type: Brush</span></li><li><span style="font-size: small;">Enclosure Note: IP55/Totally enclosed non-ventilated, suitable for humid, dusty atmospheres, requires good ventilation
</span></li><li><span style="font-size: small;">Speed Range RPM: 500-4000
</span></li><li><span style="font-size: small;">Max Rated Torque NMn/In-oz: 212/30
</span></li><li><span style="font-size: small;">Nominal Watts/HP: 112/0.16
</span></li><li><span style="font-size: small;">Power Source: 24 VDC
</span></li><li><span style="font-size: small;">Connection: Wire leads
</span></li><li><span style="font-size: small;">Weight (max): 1.14kg / 2.51 lbs
</span></li></ul><p><span style="font-size: small;">&#160;</span></p>
