Home›Products›Communications & Military›General Communications & Satellite Equipment›Huber+Suhner 3402 Series, 3402.17.0033 22652630 Lightning / EMP Protector, 50 Ohm BRAND NEW/NOS

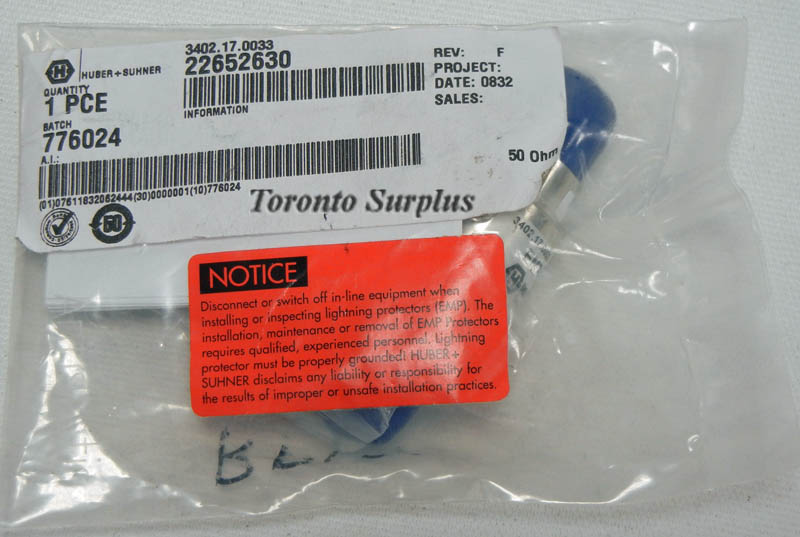

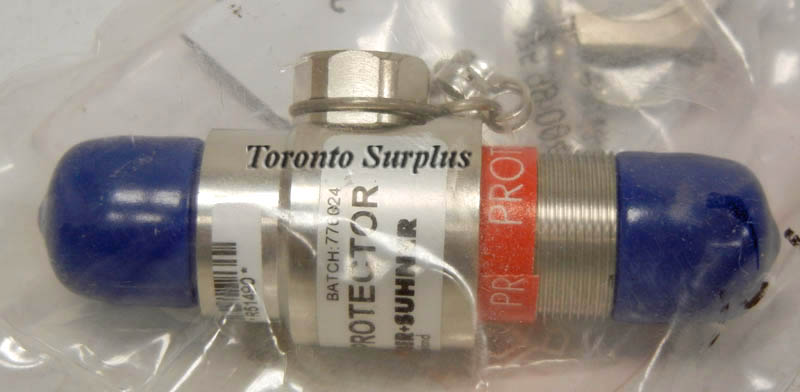

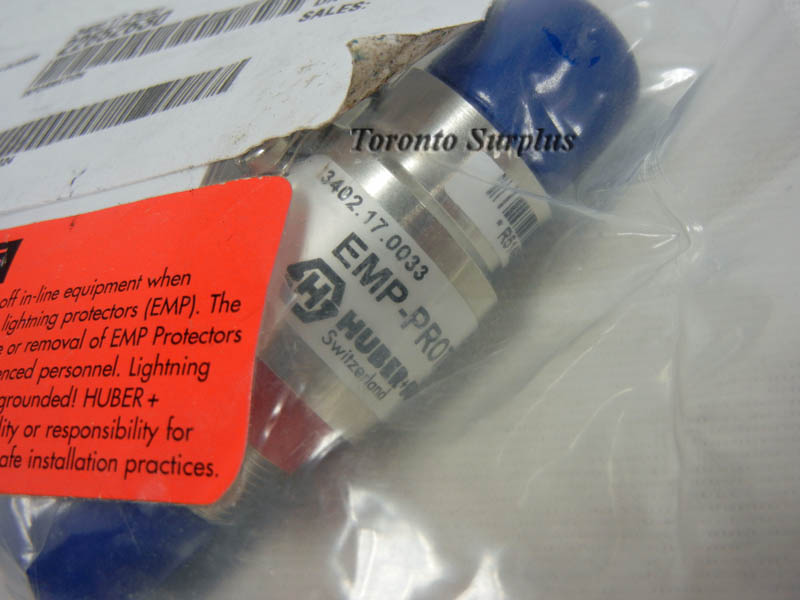

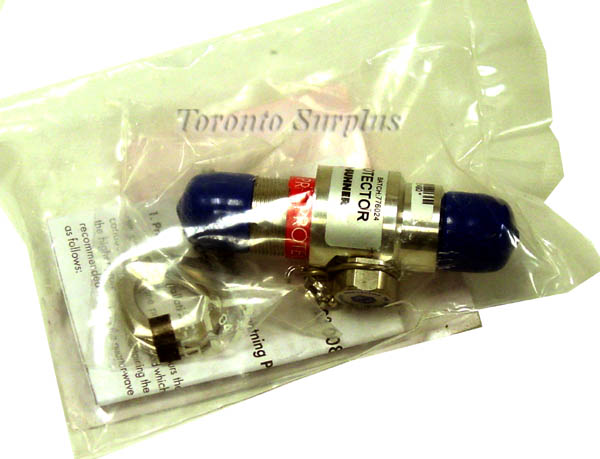

Huber+Suhner 3402 Series, 3402.17.0033 22652630 Lightning / EMP Protector, 50 Ohm BRAND NEW/NOS
sku67145 in stock
$250.00CAD
By Huber + Suhner
<p>Huber+Suhner 3402 Series, 3402.17.0033 22652630 Lightening / EMP Protector, 50 Ohm BRAND NEW/NOS</p><p>50 Ohm</p><p>Includes: Gas Capsule Holder (gas capsule not included),  mounting nut, washer and instructions.</p><p>HUBER+SUHNER gas discharge tube protectors make the best of the traditio…
Description
<p>Huber+Suhner 3402 Series, 3402.17.0033 22652630 Lightening / EMP Protector, 50 Ohm BRAND NEW/NOS</p><p>50 Ohm</p><p>Includes: Gas Capsule Holder (gas capsule not included),  mounting nut, washer and instructions.</p><p>HUBER+SUHNER gas discharge tube protectors make
the best of the traditional spark gap protection principle
for general applications in electronics and adapt it perfectly
to RF coaxial line applications.
At their heart are specially designed gas discharge
tubes. The available product range of GDT's enables a
selection according to the RF transmission power with
an optimum protection performance.
A very important feature of the GDT protectors is the
possibility to DC/AC power outdoor equipment via
coaxial cable.
Series 3402 products can be used broadband from
DC to 2 GHz or even higher.
They are generally designed as coaxial feed-throughs
which allow the customer to build up a protected area
according to the recommended and well-proven protection
zone principle of IEC 62305.
HUBER+SUHNER GDT protectors are designed such
that the gas discharge tubes can be easily exchanged
for new operation conditions or replaced in the case of
a necessary service.Impedance 50 or 75 Ω</p><p>
Frequency range DC – 2.5 GHz
RL* 20 dB min. (exception F connectors)
IL* 0.2 dB max. (exception F connectors)
 </p><p>RF power transmission according to selected gas discharge tube
 </p><p>Protection: Surge current handling capability
30 kA once and 20 kA multiple (8/20 μs test pulse)
8 kA (10/350 μs test pulse)</p><p> </p>
