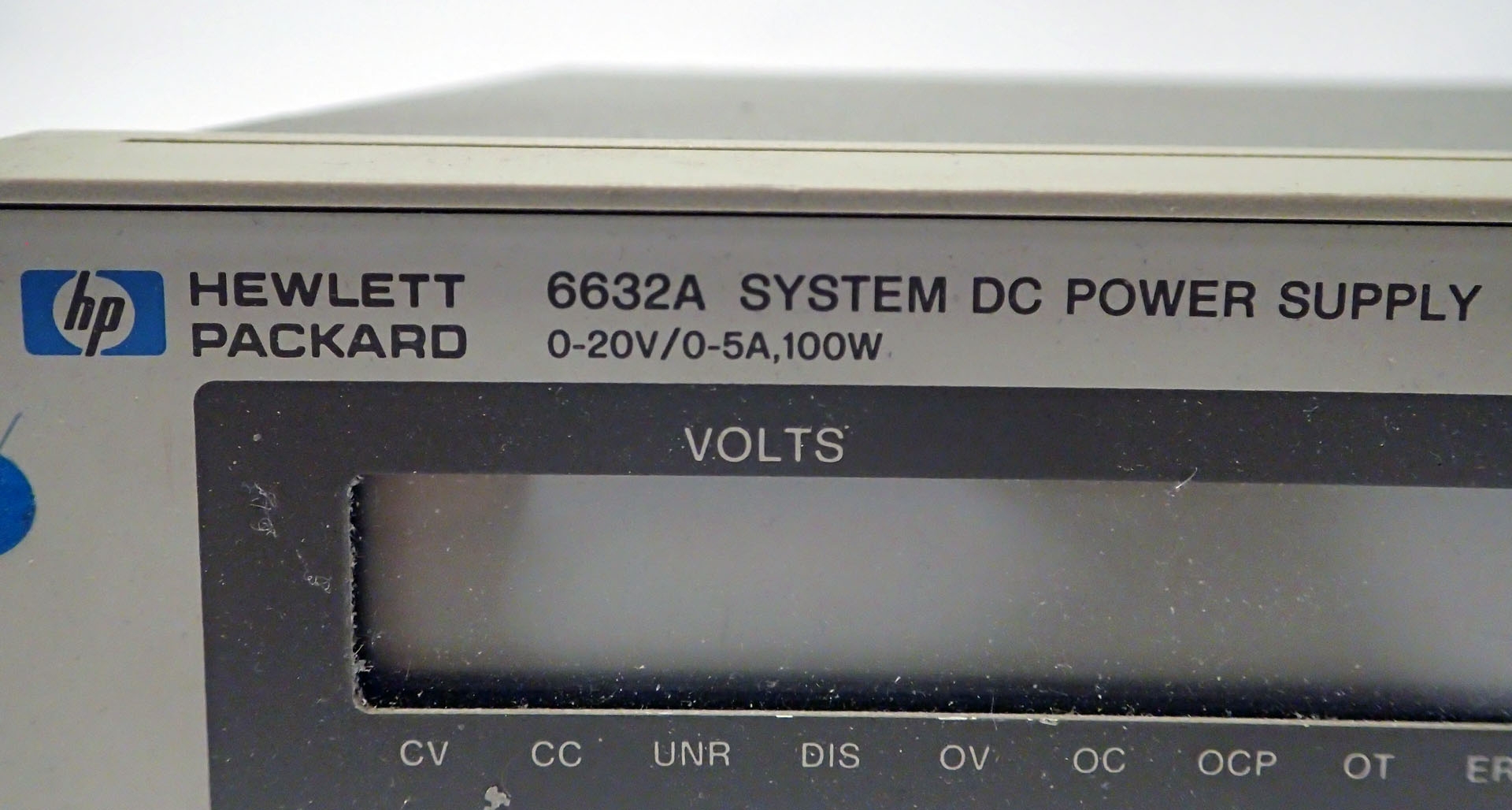

HP / Agilent 6632A System Power Supply 0-20VDC, 0-5 Amp
sku4216 in stock
$300.00CAD
By Agilent
<p>The 6632A is a 100W, single output, series pass regulated power supply optimized for system applications.  It provides high performance output with a full set of programmable features.</p><p> </p><p>Key Features:</p><p>100 Watt Linear Output Current Sinking Capability Built-in HP-IB Int…
Description
<p>The 6632A is a 100W, single output, series pass regulated power supply optimized for system applications.  It provides high performance output with a full set of programmable features.</p><p> </p><p>Key Features:</p><p>100 Watt Linear Output
Current Sinking Capability
Built-in HP-IB Interface
Overvoltage & Overcurrent Protection
Readback Measured Voltage and Current Output via HP-IB</p><p> </p><p>Output: 0-20V, 0-5A, 100W
 </p><p>Load Effect (Load Regulation): for a load change from zero to mx rated voltage or current of the supply:
Voltage: 2mV
Current: 1mA</p><p>Source Effect (Line Regulation): given for any change within the rated line voltage for any outout within the rated output voltage, current, and power of the supply.
Voltage: 0.5mV
Current: 0.5aA</p>
