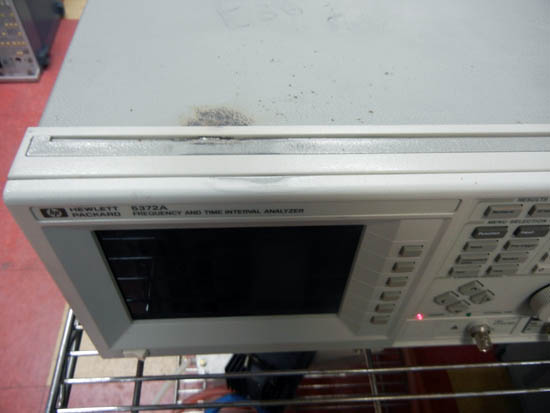

HP 5372A / Agilent 5372A Frequency & Time Interval Analyzer with OPT 030 Channel C, 100MHz to 2GHz with 2 x 54002A 50 ohm Input Pods
sku99941 — low stock
Request a Quote
By Agilent
<p><span style="font-size: medium;"><span style="font-family: Arial;">HP / Agilent 5372A Frequency & Time Interval Analyzer with OPT 030 Channel C, 100MHz to 2GHz with 2 x 54002A 50 ohm Input Pods </span></span></p><p>The Agilent 5372A modulation domain analyzer, a superset of the 5371A, captures fr…
Description
<p><span style="font-size: medium;"><span style="font-family: Arial;">HP / Agilent 5372A Frequency & Time Interval Analyzer with OPT 030 Channel C, 100MHz to 2GHz with 2 x 54002A 50 ohm Input Pods
</span></span></p><p>The Agilent 5372A modulation domain analyzer, a superset of the 5371A, captures frequency, phase, or time intervals at extremely high speeds. The 5372A can make up to 13.3 million measurements per second for signals with a frequency range of up to 500 MHz. An optional channel expands the range to 2 GHz. The 5372A combines a choice of over 60 arming and triggering configurations with built-in analysis functions including math, statistics, and limit testing.
Unique to the 5372A (compared with the 5371A) are deeper memory, hardware histograms, and FFT capabilities for high-performance and more sophisticated jitter spectrum analysis and phase noise studies. The 5372A lets you: analyze jitter effects, characterize the transient and steady state responses of a VCO, examine frequency or phase modulation, measure frequency stability, analyze computer peripherals, or measure fast hopping radio signals.</p><p> </p><ul><li>Broad selection of measurements</li><li>Quick and easy-to-use push button analysis</li><li>Graphic display and histograms for added visual meaning from collected data</li><li>200 ps single-shot, Least Significant Digit (LSD), 10 digits/second for frequency measurements (2 ps LSD for averaged measurements)</li></ul>
