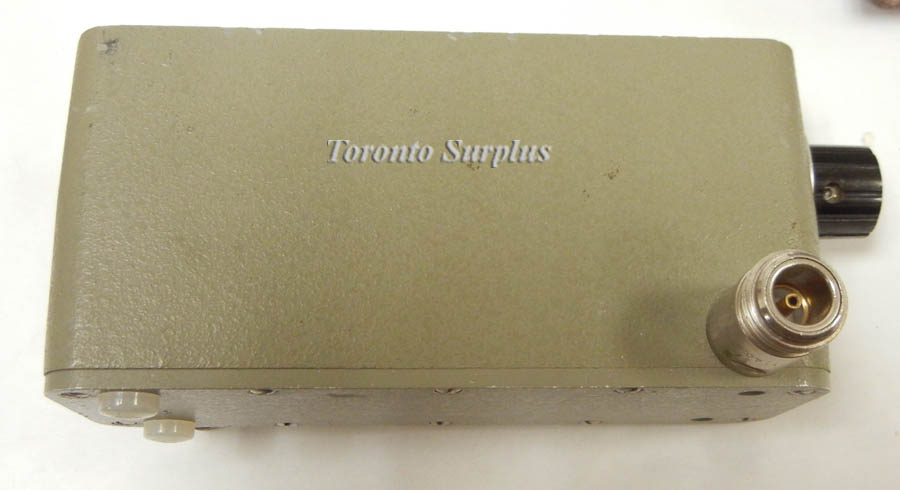

HP 355C / Agilent 355C VHF Attenuators, 0.5W, 50 ohms DC to 1000 MHz, Type-BNC OPT 1
sku106261 — low stock
$150.00CAD
By Agilent
<ul><li> Attenuation: 12 dB in 1-dB steps.</li><li>Frequency Range: DC to 1000 MHz.</li><li>Overall Accuracy: ±0.1 dB at 1000 MHz; ± 0.25 dB dc, to 500 MHz;</li><li>± 0.35 dB, dc to 1000 MHz.</li><li>Impedance: 50 ohms nominal.</li><li>Power Handling Capability: 0.5 watt average, 350 watts peak…
Description
<ul><li> Attenuation: 12 dB in 1-dB steps.</li><li>Frequency Range: DC to 1000 MHz.</li><li>Overall Accuracy: ±0.1 dB at 1000 MHz; ± 0.25 dB dc, to 500 MHz;</li><li>± 0.35 dB, dc to 1000 MHz.</li><li>Impedance: 50 ohms nominal.</li><li>Power Handling Capability: 0.5 watt average, 350 watts peak.</li><li>Maximum SWR (input and output): 1.2 below 250 MHz; 1.3 below 500 MHz;</li><li>1.5 below 1000 MHz.</li><li>Maximum Insertion Loss (insertion loss at 0 dB): 0.20 dB + 2.30 dB/GHz.</li></ul>
