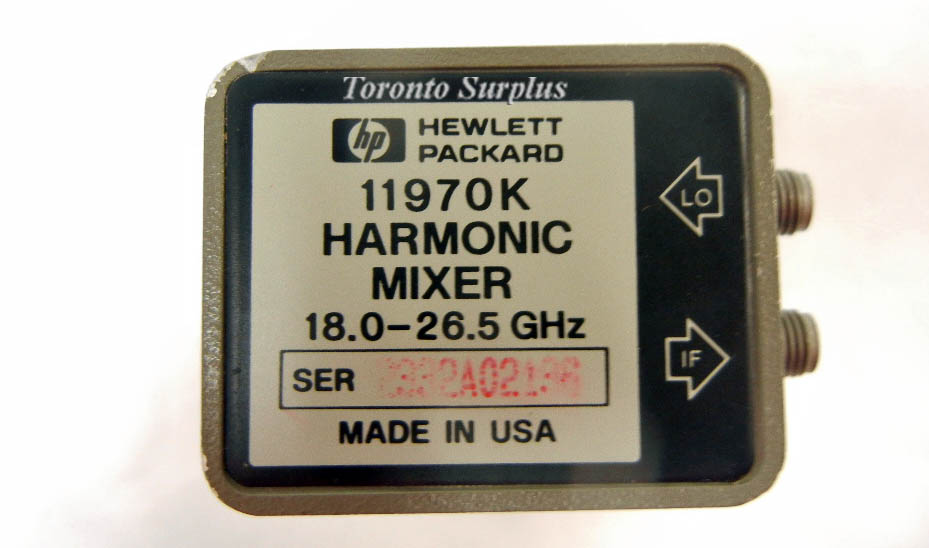

HP 11970K / Agilent 11970K Harmonic Mixer 18.0 - 26.5 GHz, +20dbm AVG
sku105662 — low stock
Request a Quote
By Hewlett Packard
<p>  The 11970K extends the frequency range of the Agilent E4407B ESA-E series portable spectrum analyzer, the Agilent 8560 E-series portable spectrum analyzers, the Agilent 8566B spectrum analyzer (used with the Agilent 11975A amplifier), and the Agilent 70000 modular measurement system (used…
Description
<p>
The 11970K extends the frequency range of the Agilent E4407B ESA-E series portable spectrum analyzer, the Agilent 8560 E-series portable spectrum analyzers, the Agilent 8566B spectrum analyzer (used with the Agilent 11975A amplifier), and the Agilent 70000 modular measurement system (used with the Agilent 70907A/B external mixer interface modules).
 </p><ul><li>F range: DC to 1300 MHz</li><li>Frequency range: 18 to 26.5 GHz</li><li>LO amplitude range: +14 to +18 dBm</li><li>LO harmonic number: 6-</li><li>Maximum CW RF input level: +20 dBm (100 mW)</li><li>Maximum peak pulse power: +24 dBm (250 mW)</li><li>Spectrum analyzer noise (1 kHz BW): -105 dBm</li><li>Typical gain compression: -3 dBm</li><li>Flat frequency response of ±1.9 dB</li><li>Low conversion loss of 24 dB maximum</li><li>No bias or tuning adjustments</li><li>100 mW safe input level</li><li>Rugged, and easy to use</li></ul><p>
</p>
The 11970K extends the frequency range of the Agilent E4407B ESA-E series portable spectrum analyzer, the Agilent 8560 E-series portable spectrum analyzers, the Agilent 8566B spectrum analyzer (used with the Agilent 11975A amplifier), and the Agilent 70000 modular measurement system (used with the Agilent 70907A/B external mixer interface modules).
 </p><ul><li>F range: DC to 1300 MHz</li><li>Frequency range: 18 to 26.5 GHz</li><li>LO amplitude range: +14 to +18 dBm</li><li>LO harmonic number: 6-</li><li>Maximum CW RF input level: +20 dBm (100 mW)</li><li>Maximum peak pulse power: +24 dBm (250 mW)</li><li>Spectrum analyzer noise (1 kHz BW): -105 dBm</li><li>Typical gain compression: -3 dBm</li><li>Flat frequency response of ±1.9 dB</li><li>Low conversion loss of 24 dB maximum</li><li>No bias or tuning adjustments</li><li>100 mW safe input level</li><li>Rugged, and easy to use</li></ul><p>
