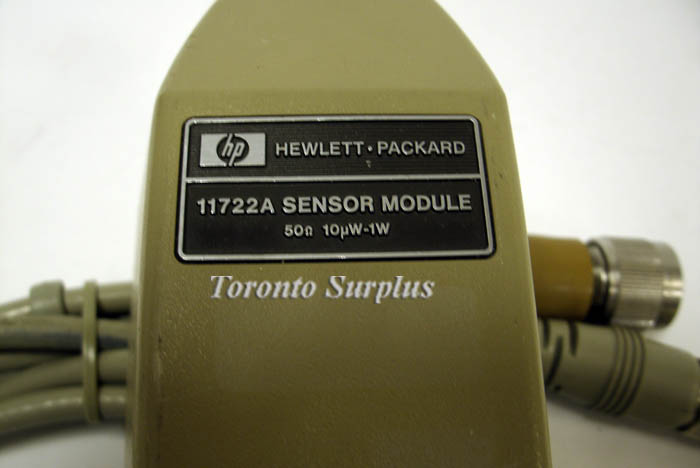

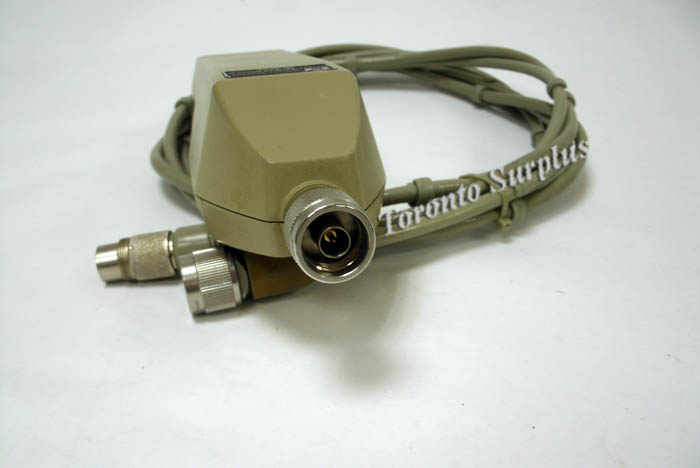

HP 11722A / Agilent 11722A Sensor Module 50 Ohm for 8902A
sku106971 — low stock
$1,985.00CAD
By HP
<p> The HP 11722A sensor module is essentially an RF power sensor with an RF switch at its input. The RF input to the sensor module can be remotely switched between its power sensor and a through path RF cable. The power sensor is used to measure the average power from an external RF source.</p…
Description
<p> The HP 11722A sensor module is essentially an RF power sensor with an RF switch at its input. The RF input to the sensor module can be remotely switched between its power sensor and a through path RF cable. The power sensor is used to measure the average power from an external RF source.</p><ul><li>Power range: -20 to +30 dBm (10 µW to 1 W)</li><li>Frequency range: 100 kHz to 2.6 GHz</li><li>Linearity: -4% to +2%</li><li>Input SWR: <1.15 when connected to an 8901B or 8902A</li><li>RF input maximum average power: 1 W</li><li>Maximum peak power: 100 Wpeak or 300 W ms per pulse</li><li>Switch life: >1,000,000 switchings</li><li>Switch isolation: >90 dB</li><li>Input connector: Type-N, male</li><li>Input impedance: 50 Ω nominal</li></ul><p> </p>
