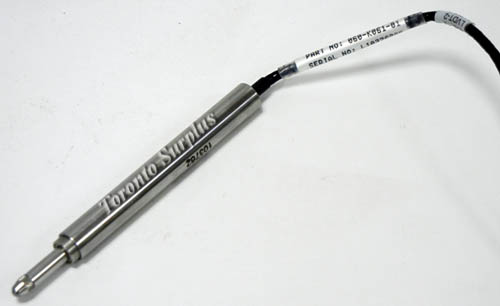

Honeywell 060-K061-01 / 060K06101 AC/AC S5 Stainless Steel Ultra Precison Displacement Transducer, +/- 0.2 IN

Description

<p>Honeywell 060-K061-01 / 060K06101 S5 Stainless Steel Ultra Precison Displacement Transducer, +/- 0.2 IN</p><p>Description:
Model S5 Ultra Precision displacement transducer is designed for single and multi-point industrial gaging applications and micro-displacement measurements in research and scientific studies. It incorporates non-rotating armatures to increase resistance to side loads and improve repeatability. Bodies and prboes are stainless steel constructed and windings are magnetically shielded. Ultra Precision displacement transducers utilize spring loaded captive guided armatures and low friction, non-rotating probes. Non-linearity is 0.25 full scale

Features:
- Miniature design
- 0.25% non-linearity
- Rugged, enhanced accuracy
- Enhanced immunity to electrical noise
- + 0.01 in to +0.5 in range
- Non-rotating Probe
- Stainless Steel construction
- Extended Life Cycle
- Infinite Resolution
- Captive guided spring return armature</p><p>*Full Spec sheet available upon request</p><p><span style="font-size: larger;">Transducer with Tip.&#160; Boot not included.</span>
&#160;</p>

Specifications
