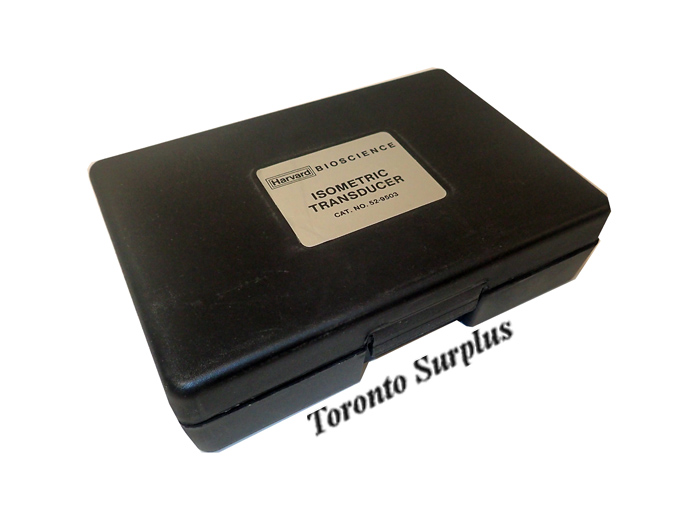

Harvard Bioscience 52-9503 Isometric Transducer & Instructions

Description

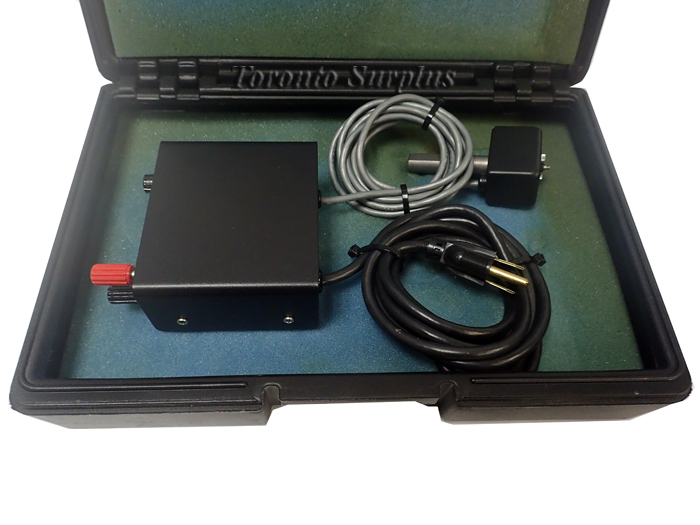

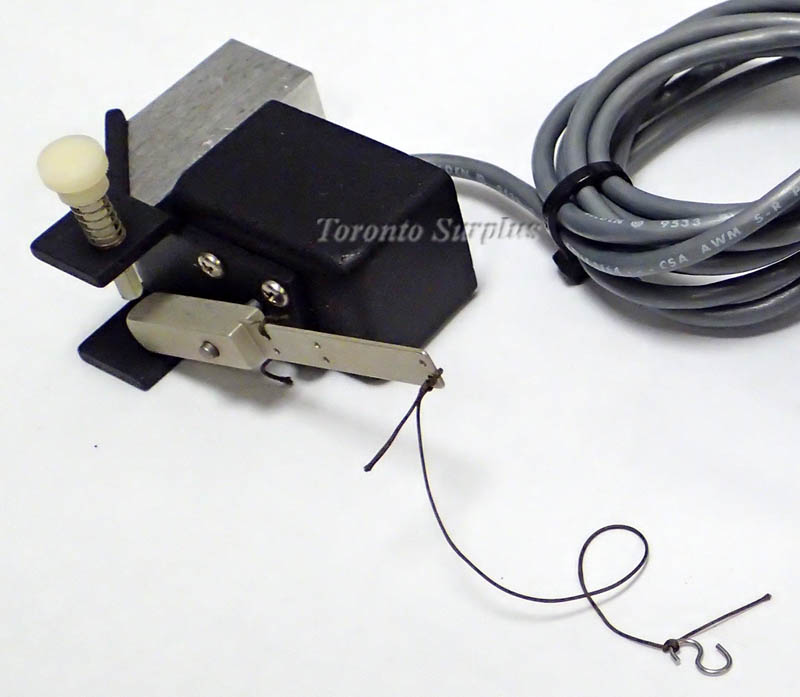

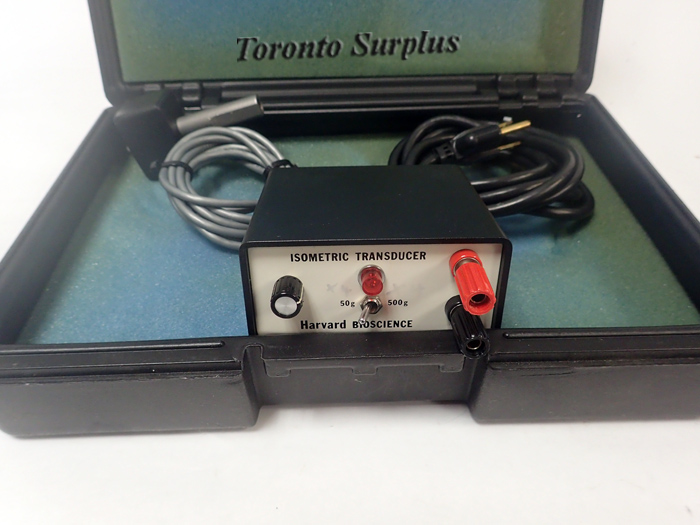

<p>&#160;Isometric Transducer 52-9503 </p><p>This transducer operates on the principal of converting small picofarad capacitance changes into a large D.C. output voltage using a patented circuit. The transducer consists of a stiff beam suspended between two capacitor plates, forming a differential capacitor. Using this principal, the beam can be exceptonally stiff approachng the ideal of measuring force without motion. For a force of 1 gram, the beam deflects only .1 microns in either the 50 gram or 500 gram range with linearityof ± 1%, high D.C. voltage output with excellent freedom from drift and stability.</p><p>&#160;</p><p>We are offering the power supply with integrated transducer &amp; operating instructions as pictured.</p>

Specifications
