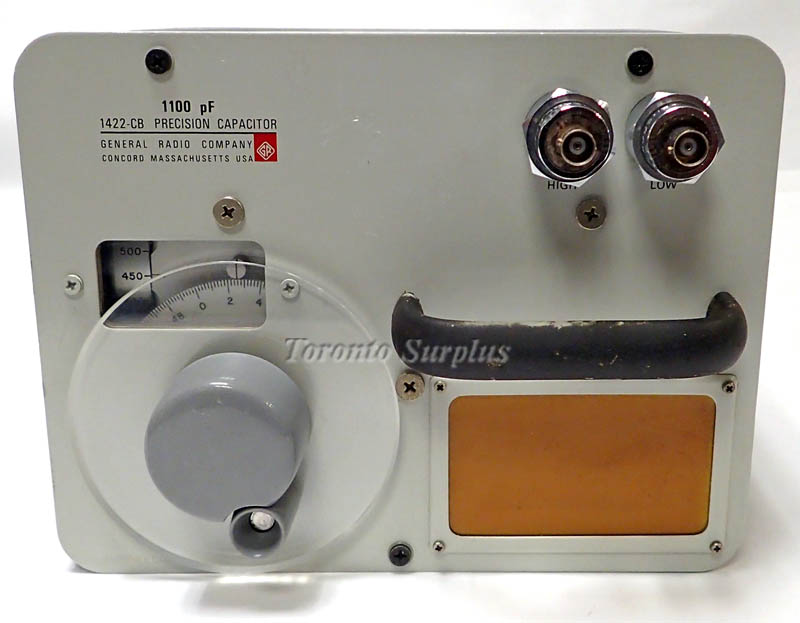

General Radio 1422-CB GenRad Precision Capacitor, 3 Terminal 1100 pF
sku125951 — low stock
$4,498.00CAD
By General Radio
<p>The 1422-CB is three-terminal capacitor with shielded coaxial terminals for use in three-terminal measurements. Connection is made via GR-874 connectors. The calibrated direct capacitance is independent of terminal capacitance to ground, and losses are very low.  The current IET catalog n…
Description
<p>The 1422-CB is three-terminal capacitor with shielded coaxial terminals for use in three-terminal measurements. Connection is made via GR-874 connectors. The calibrated direct capacitance is independent of terminal capacitance to ground, and losses are very low.  The current IET catalog number is 1422-9916, but ours is the GenRad version. 1422-CB</p><p> </p><p>SPECIFICATIONS:</p><ul><li>Capacitance Range (min/max): 50/1100 pF</li><li>Scale, pF Division: 0.2</li><li>Initial Accuracy pF: ±1.5</li><li>Direct-Reading (Adjustment) Total Capacitance: ±1.5</li><li>Residuals (typical values) Inductance, uH: 0.14</li><li>Residuals (typical values) Resistance, ohms at 1 MHz: 0.1</li><li>Terminal Capacitance, pF, typical, high terminal to case: 36/35</li><li>Terminal Capacitance, pF, typical, low terminal to case: 58/53</li></ul><p>We are including the 2 x GR-874-BNC (f) adapters pictured.</p>
