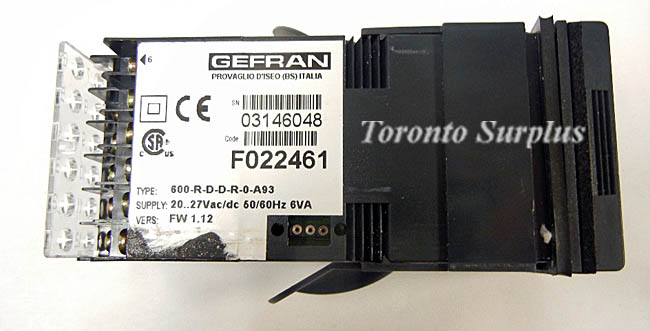

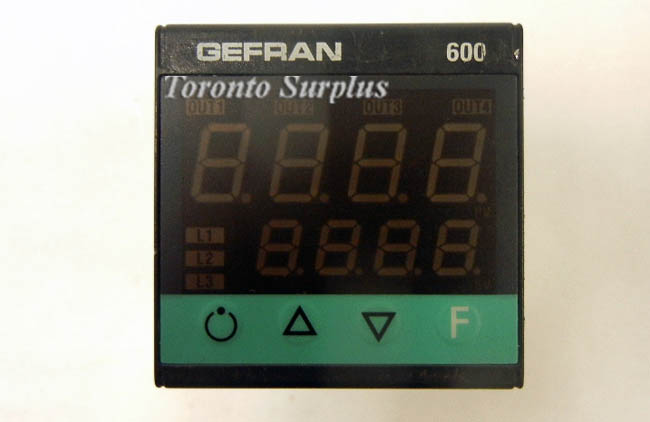

Gefran 600 / 600-R-D-D-R-0-A93 PID Temperature Controller 60Hz ,6VA

Description

<p>&#160; Choose from a wide range of software-selectable inputs, including 0-10V and 4-20mA.. Universal input configurable from faceplate
&#160; &#160;
Self-tuning, Auto-tuning, Soft-start, bumpless Man/Auto function: Obtain perfect control by activating autotuning via button on faceplate, making commissioning very easy
&#160; &#160;
&#160;Accuracy better than 0.2% f.s. under nominal conditions
&#160; &#160;
&#160;Control output: relay, logic, Triac or continuous
&#160; &#160;
&#160;Hot/cold function with selection of cooling fluid
&#160;3 alarms with completely configurable function: Know what the controller is doing : LEDs will flash when softstart or autotuning are in progress or when a sensor fault occurs. Trigger pre-configured control functions (alarm reset, Auto Manual mode…) via remote switch.
&#160; &#160;
&#160;Analog retransmission output
&#160; &#160;
&#160;Isolated digital input with configurable function
&#160; &#160;
&#160;Auxiliary input for CT (TA) (50mAac)
&#160; &#160;
&#160;Heater break or probe short-circuit alarm
&#160;&#160;
&#160;&#160; &#160;
Optically isolated RS485 serial line.
Protocol: GEFRAN CENCAL or MODBUS RTU
&#160; &#160;
Self-diagnosis
&#160;&#160; &#160;
Rapid configuration from PC with Winstrum packet</p>
