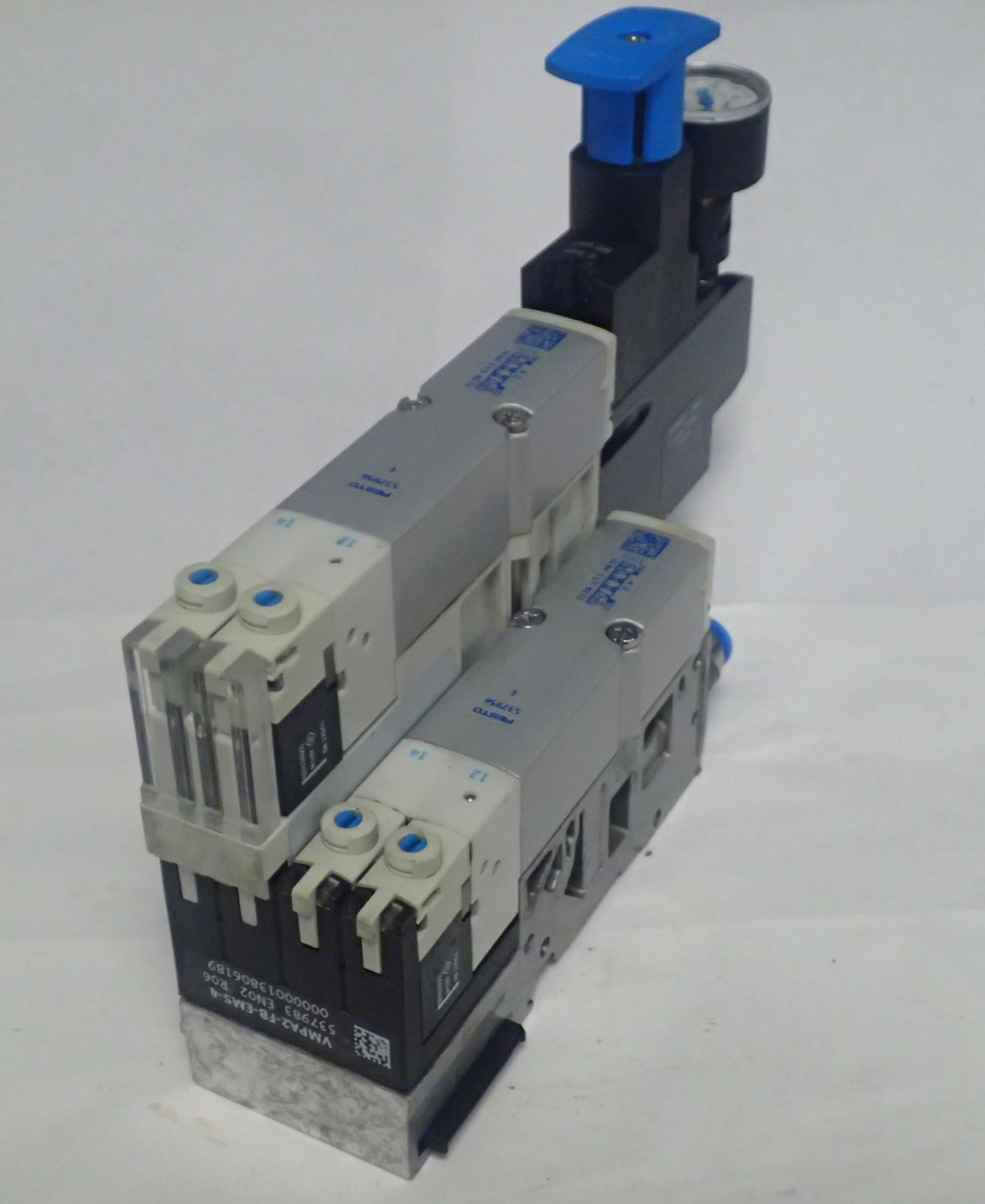

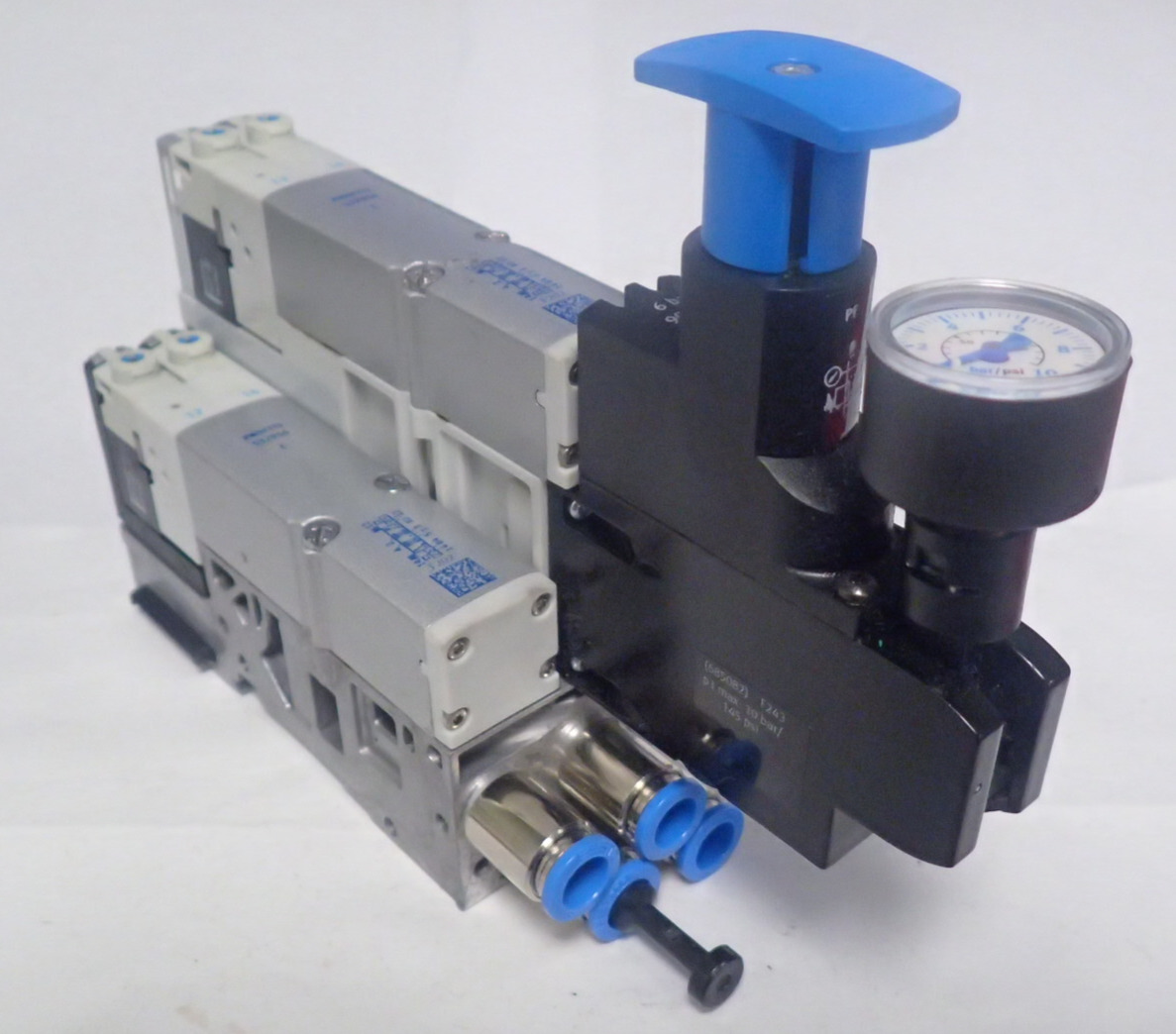

Festo VMPA pneumatic valve terminal assembly

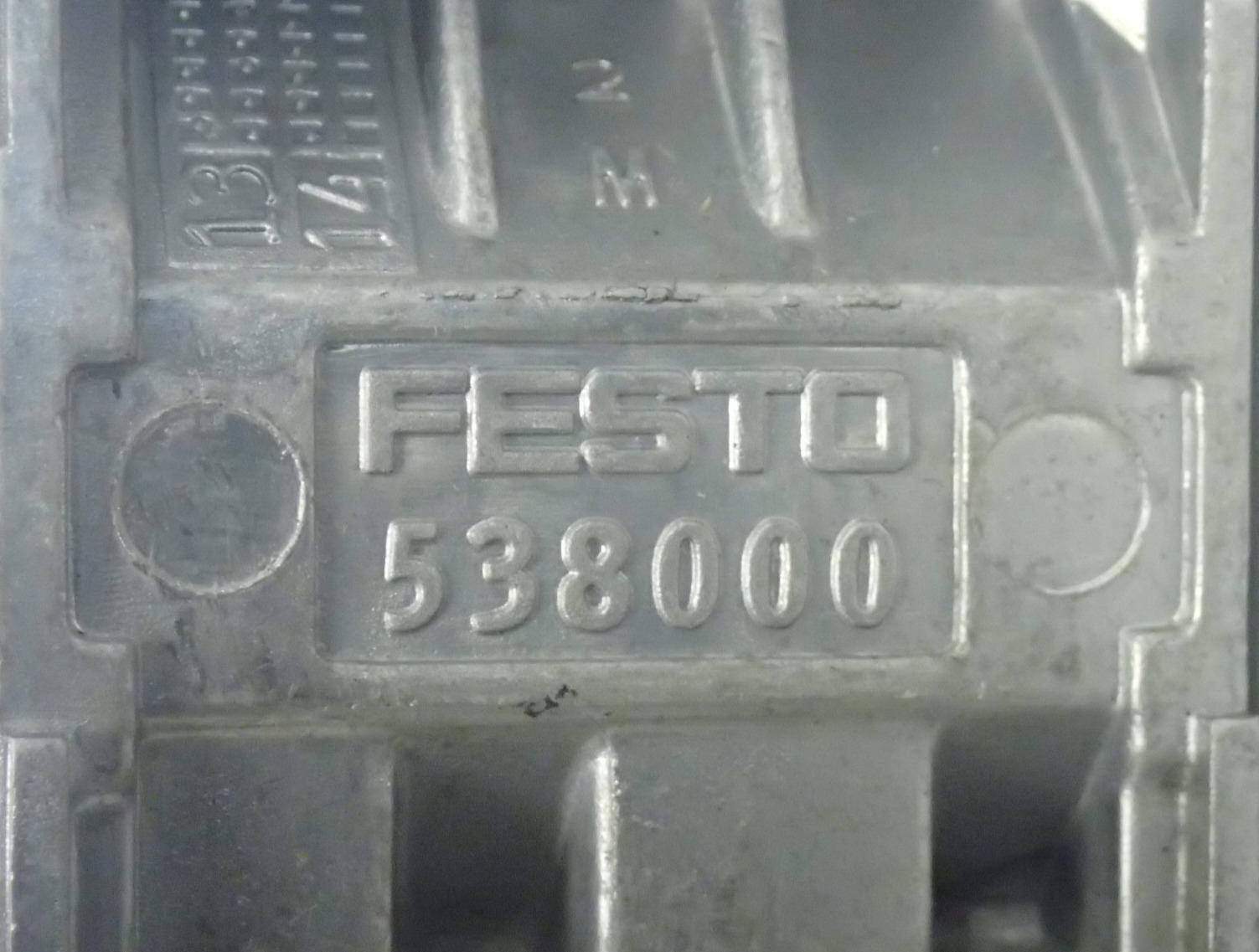

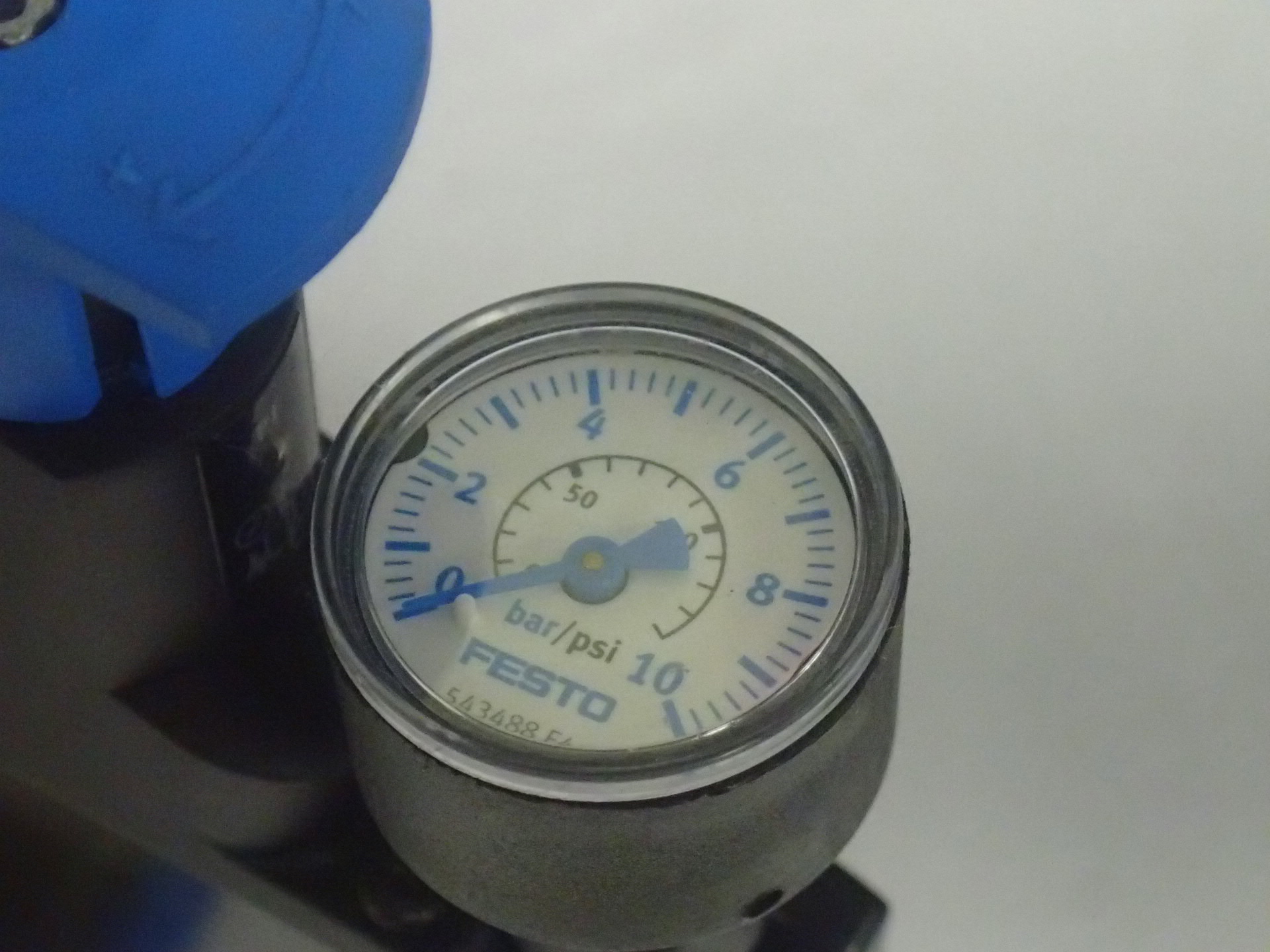

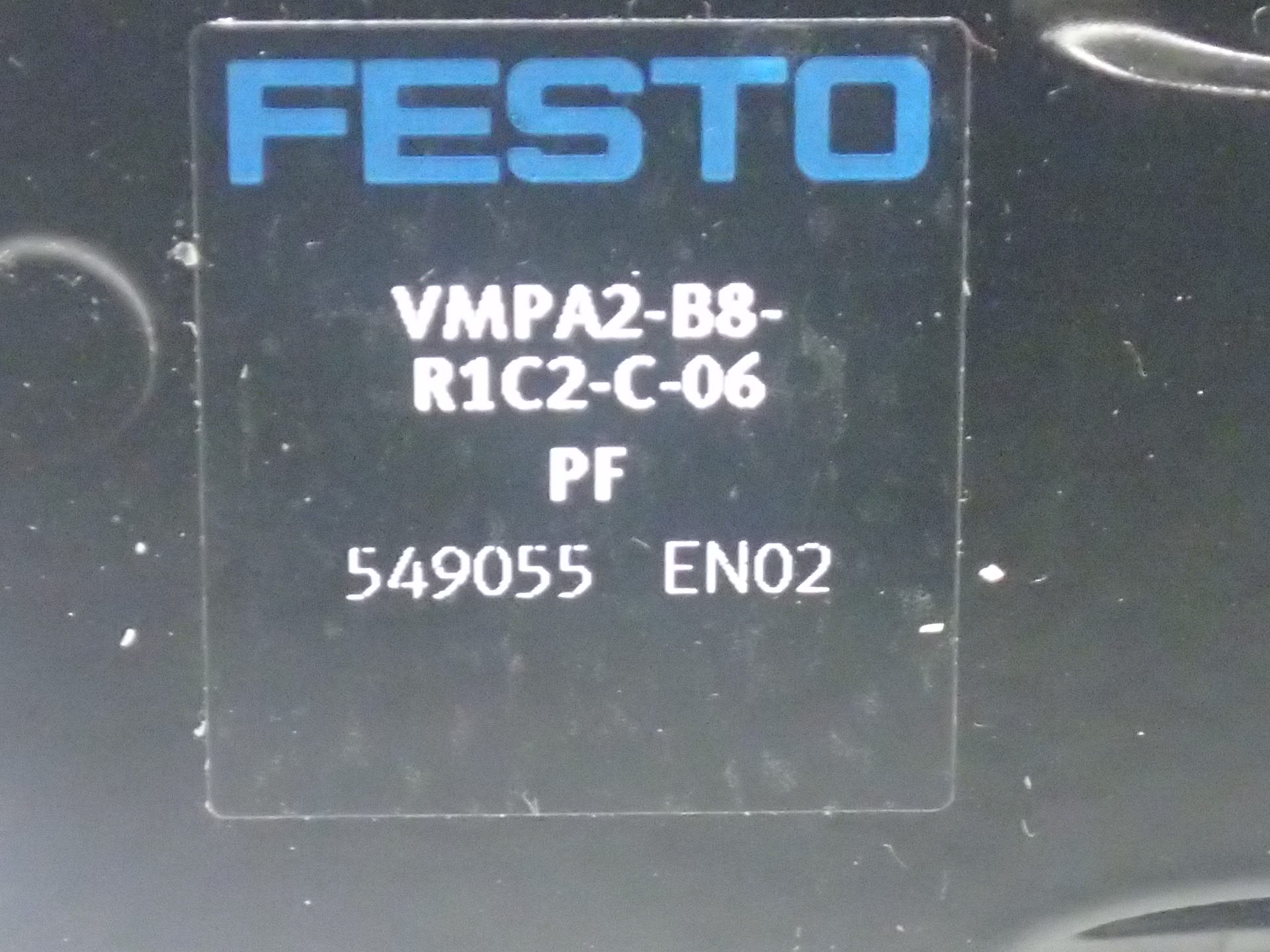

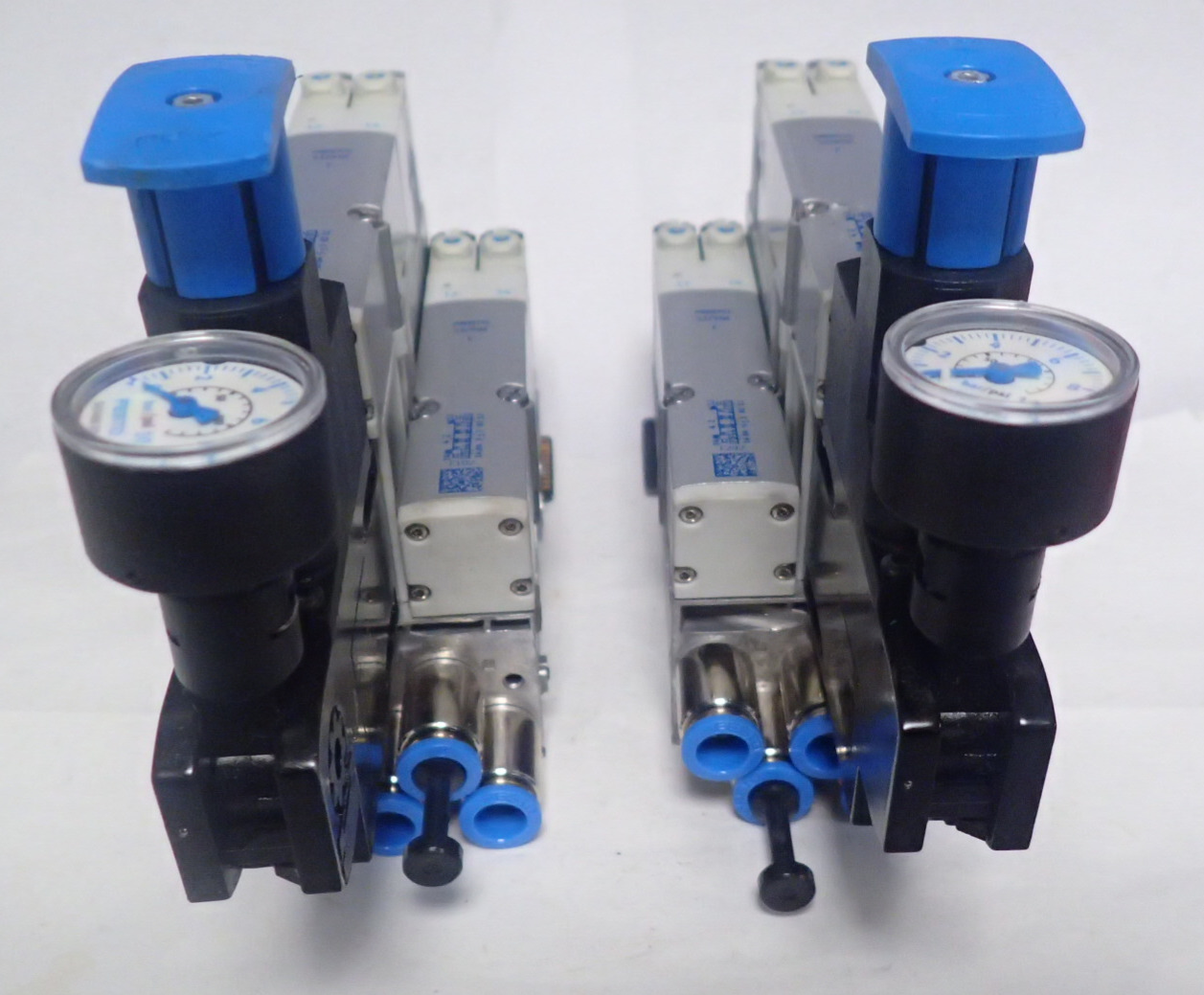

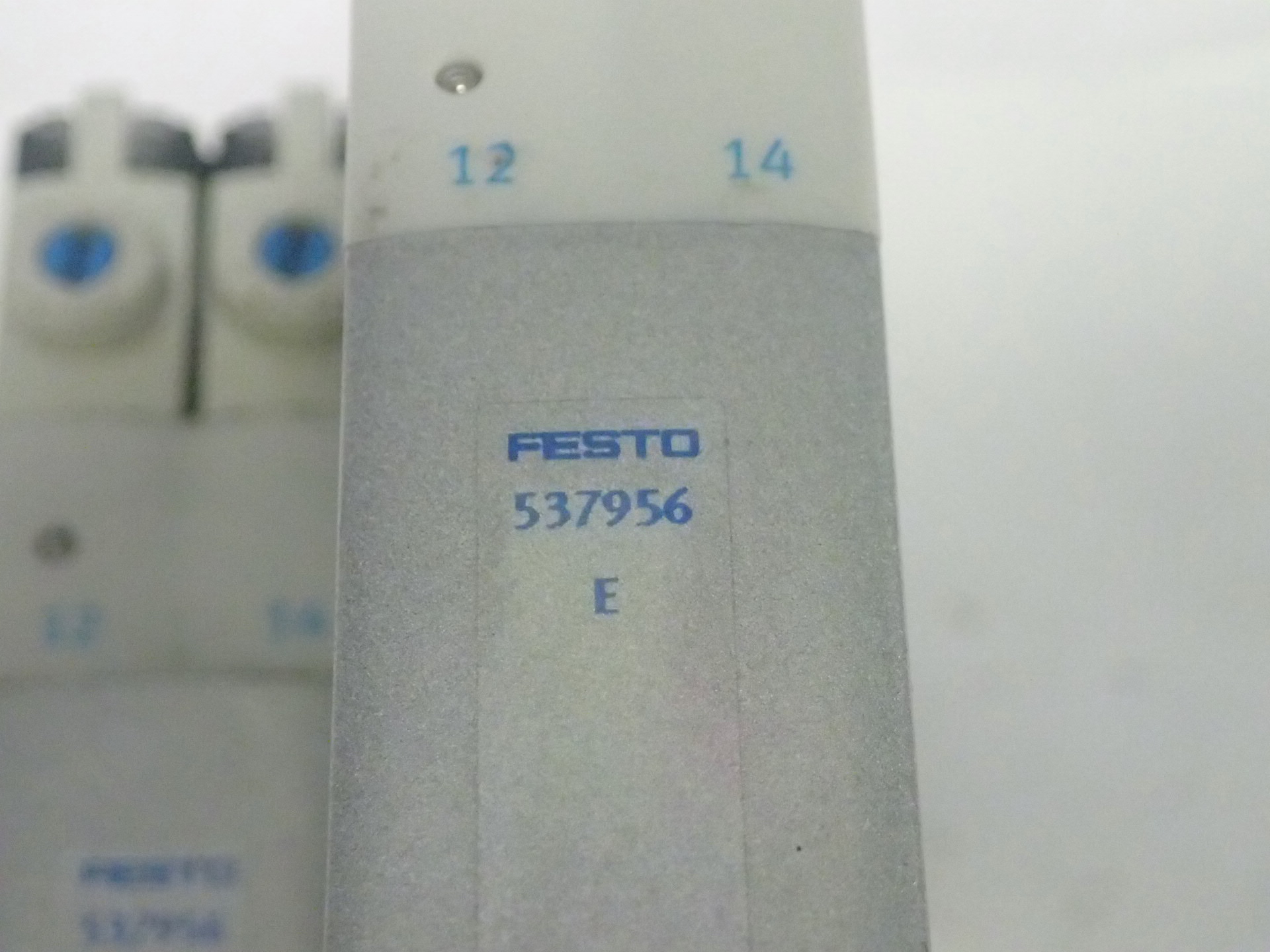

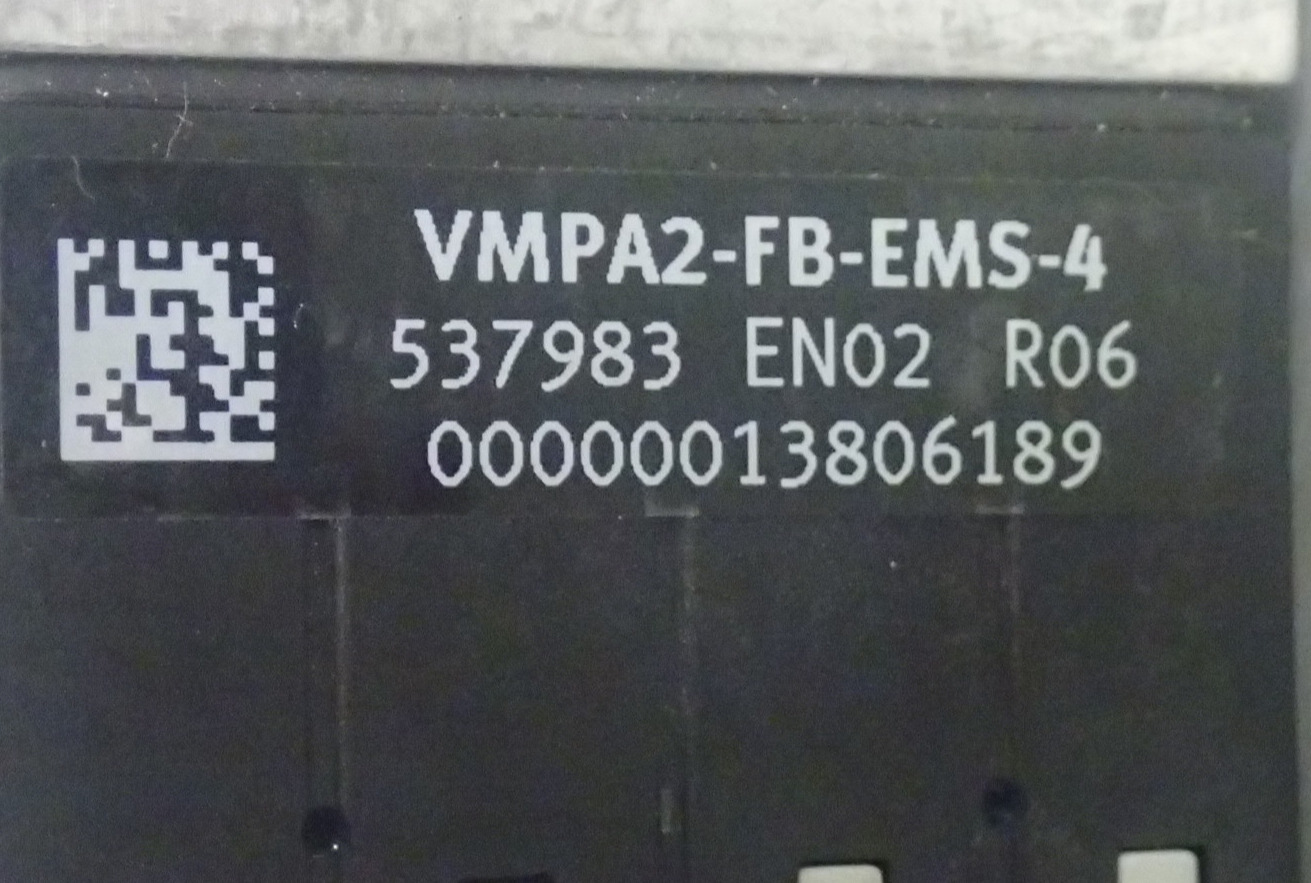

VMPA2-FB-EMS-4: valve terminal electronics/fieldbus interface module. (2) 537956 (VMPA2-M1H-E-PI) electrically actuated pneumatic directional control valves. 538000: manifold base that the valves mount on. VMPA2-B8-R1C2-C-06: pressure regulator plate for a station on the manifold The assembly receives electrical commands from a PLC through the VMPA2-FB-EMS-4 and switches compressed air through the two 537956 valves to operate pneumatic cylinders, grippers, or other actuators. The regulator plate allows a controlled pressure zone within the manifold. These units are in a Left and Right configuration but the same changeable parts.
