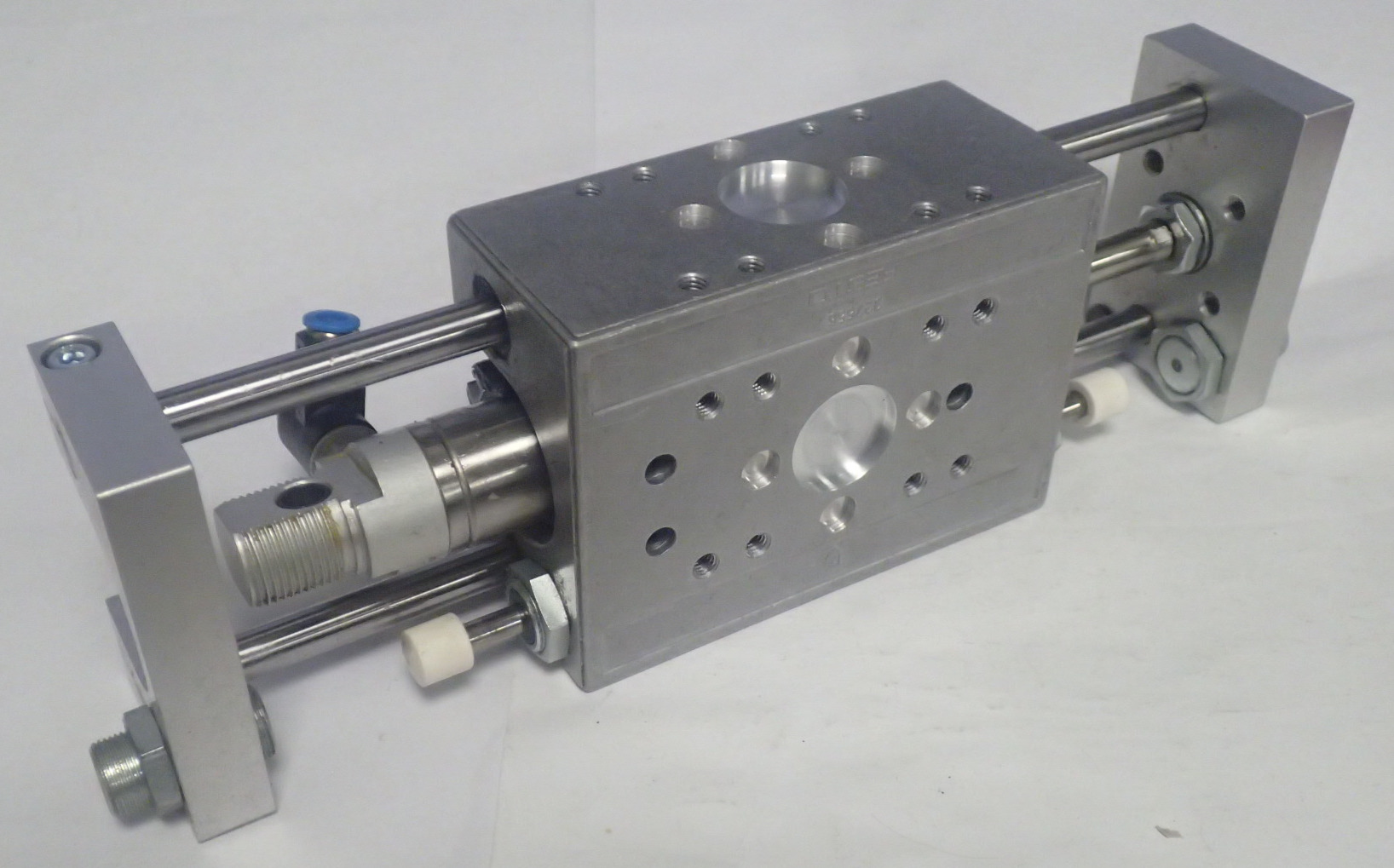

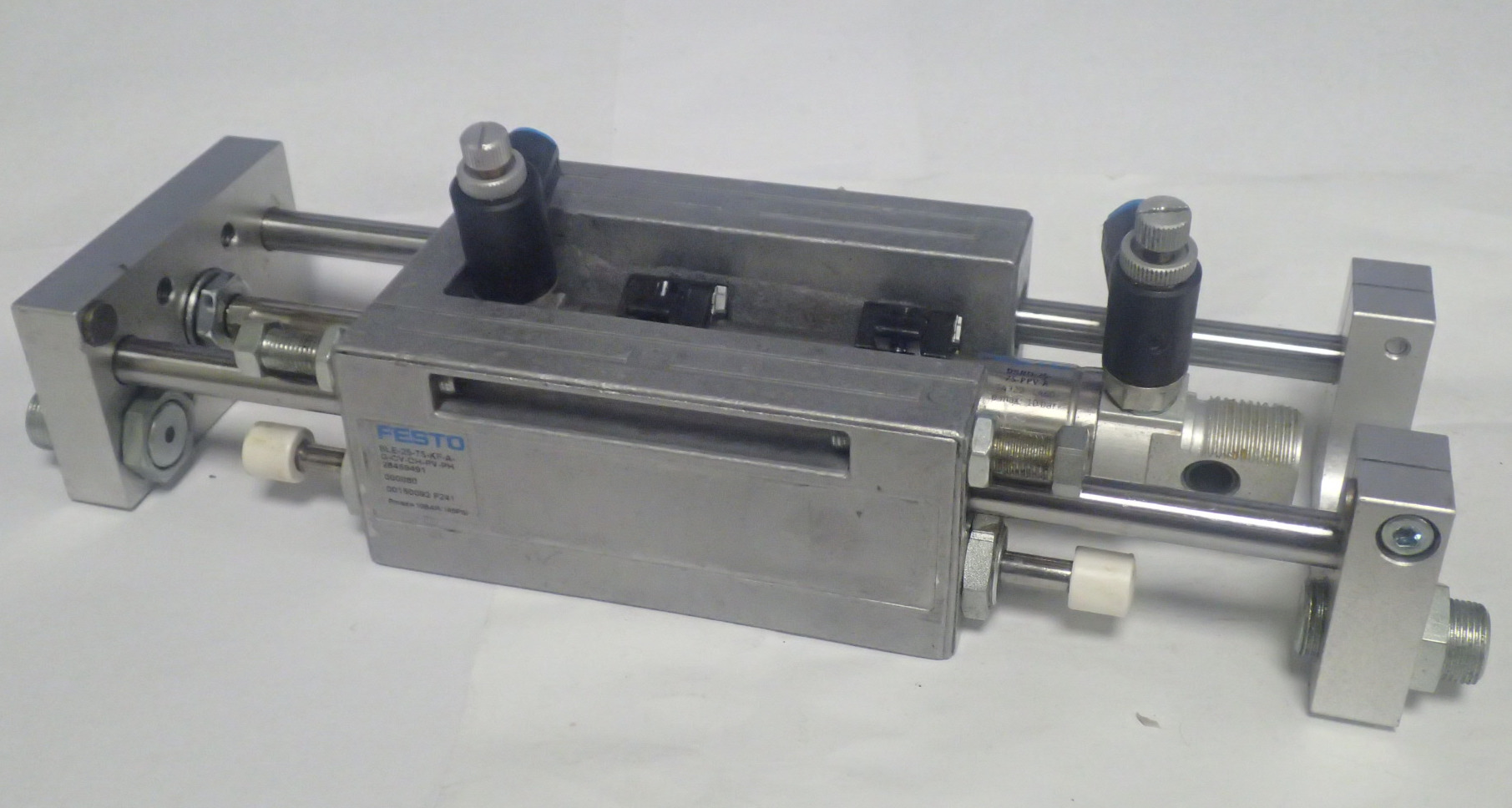

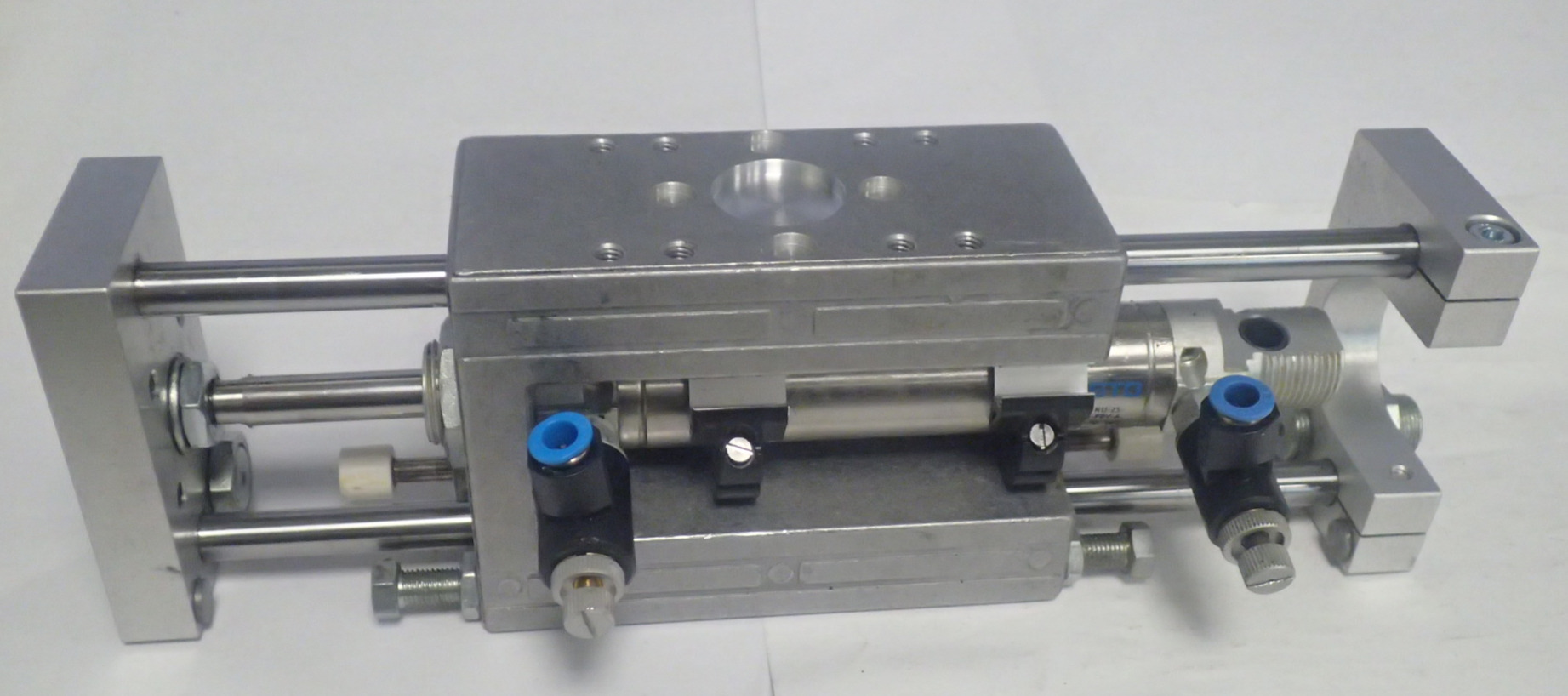

Festo SLE-25-75-KF-A-G-CV-CH-PV-PH pneumatic linear slide/unit. Festo DSNU-25-75-PPV-A

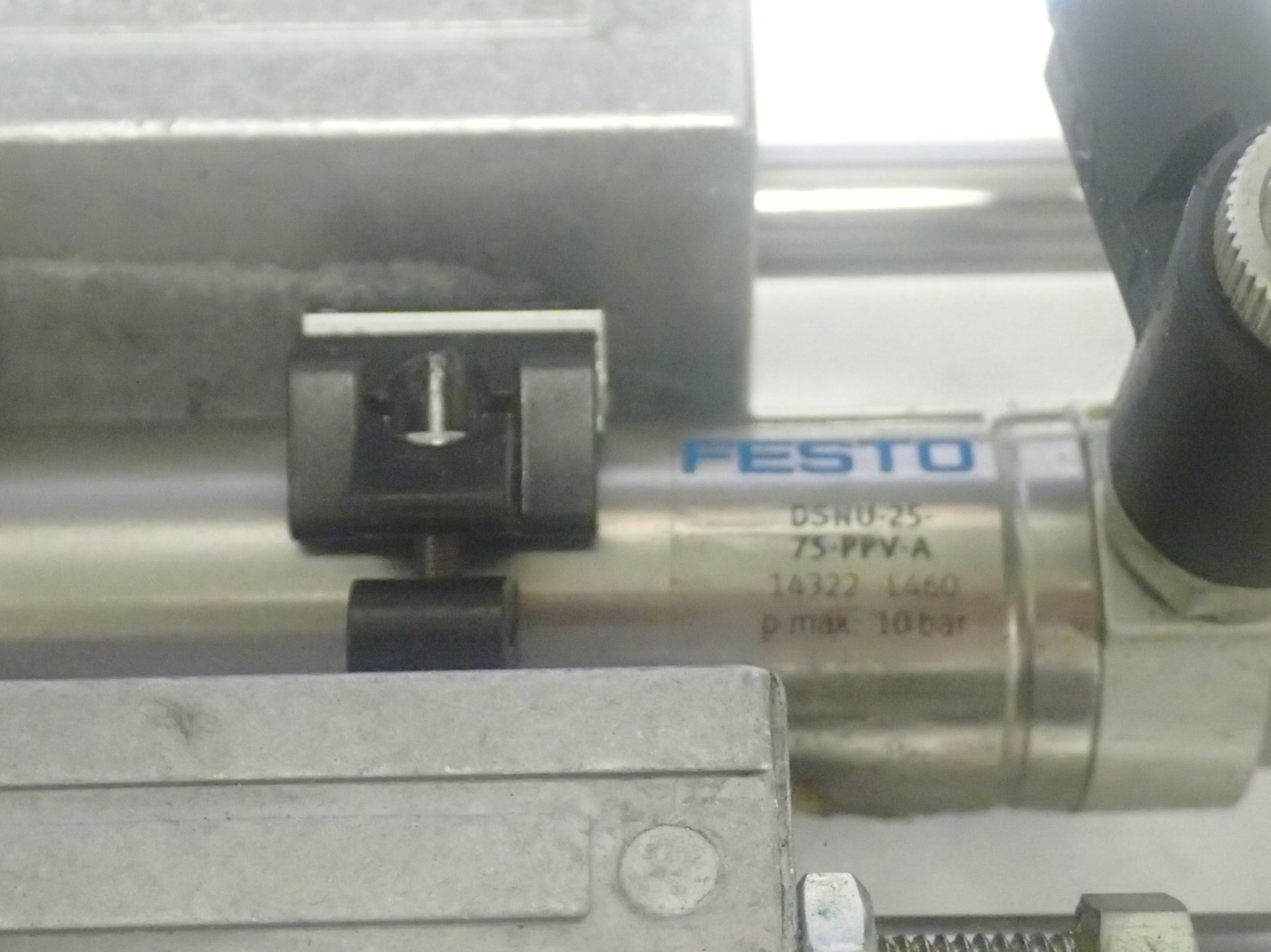

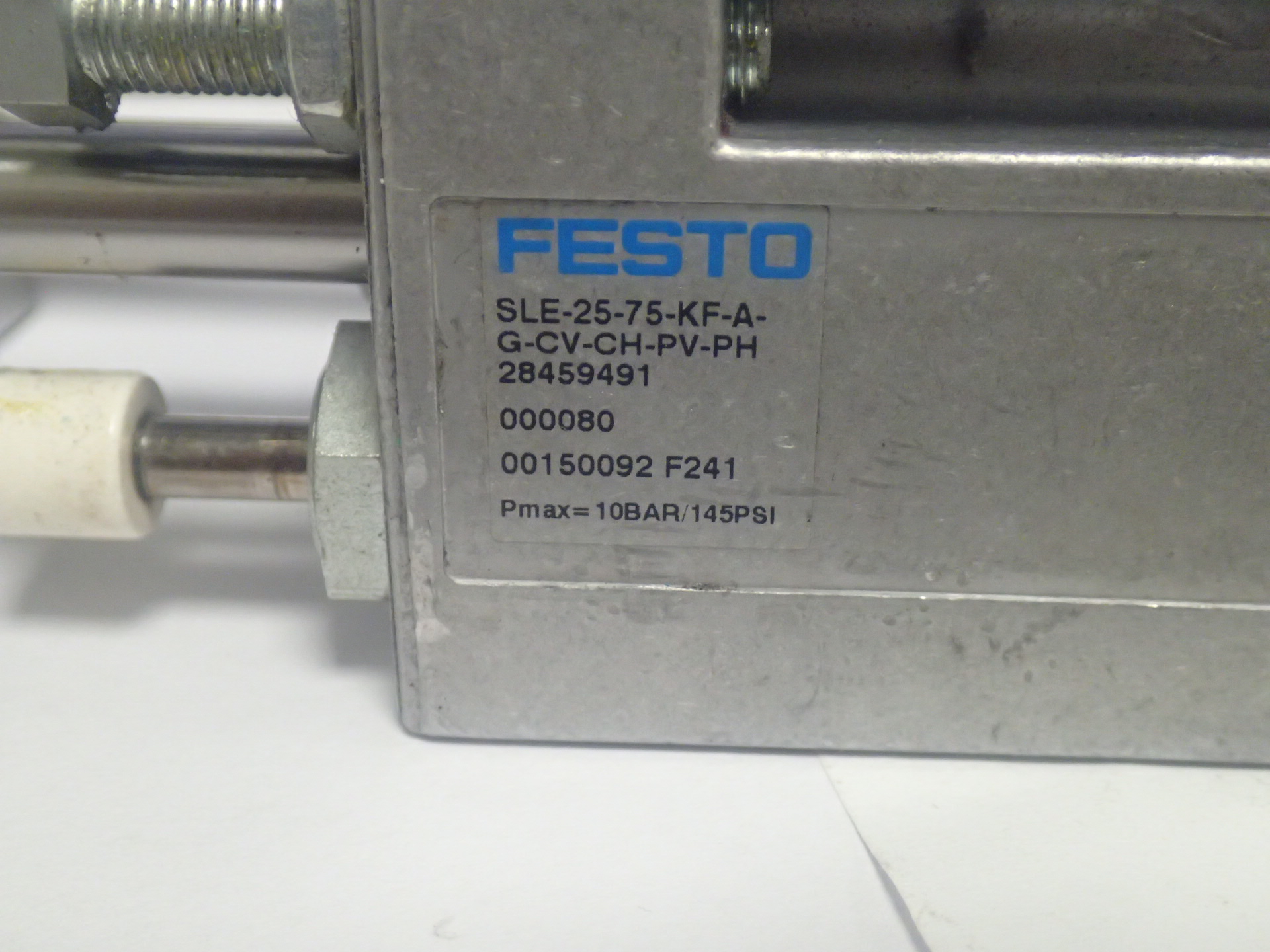

SLE = Festo Linear Unit 25 = 25 mm piston diameter 75 = 75 mm stroke KF = Recirculating ball-bearing guide A = Provision for position sensing CV / CH = Front and rear switching stops PV / PH = Front and rear inductive proximity sensors G = Basic solution package configuration ISO 6432 round pneumatic cylinder 25 mm bore 75 mm stroke Double-acting Adjustable pneumatic cushioning at both ends (PPV) Operating pressure 1-10 bar
