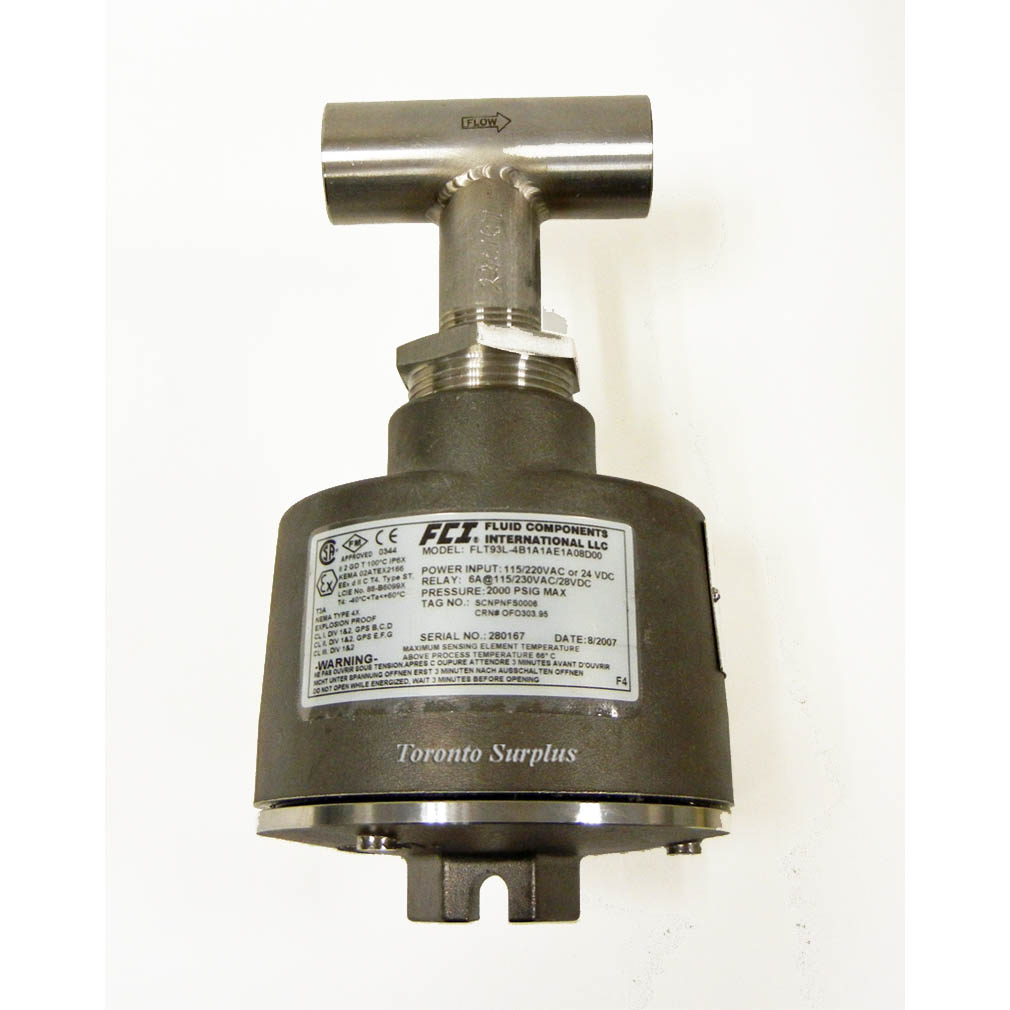

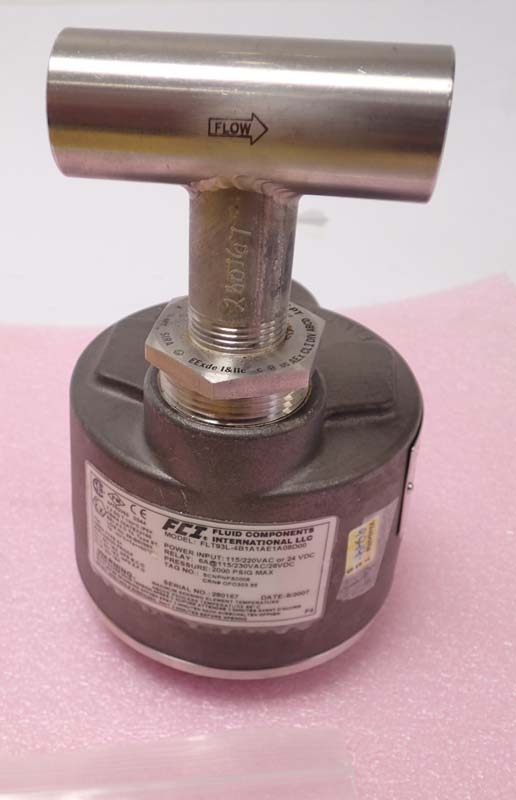

FCI International FLT93L-4B1A1AE1A08D00 Flow Switch with Inline Flexswitch and Manuals

Description

<p><span style="font-size: small;">&#160;The FLT93L inline type FlexSwitch for flow and temperature monitoring represents the first true technological breakthrough in thermal technology in over a decade. FCI is the only thermal manufacturer providing temperature compensation to ensure set point accuracy for process temperatures that vary up to ± 100° F.&#160;The FLT93L is easily field-configured or factory preset, providing unparalleled flexibility, accuracy and stability for all multiple process sensing and switching requirements.</span></p><ul><li>Power Input 15/220VAC</li><li>Relay 6A @115/230VAC/ 28 VDC</li><li>Pressure 2000 PSIG Max
</li></ul><p>Flow Element
Materials of Construction: All-welded 316L stainless steel for all wetted surfaces.&#160;
Process Connection:
Standard: 1 inch male NPT or 0.75 inch female NPT at tee inlet and outlet
Inline Tee Length: 3.375 inch [86 mm]
Operating Temperature:
Standard: -40° to +350° F&#160; [-40° to +177° C]
Optional: -100° to +500° F&#160; [-73° to +260° C]
Operating Pressure: To 3500 psig&#160; [240 bar(g)]
&#160;

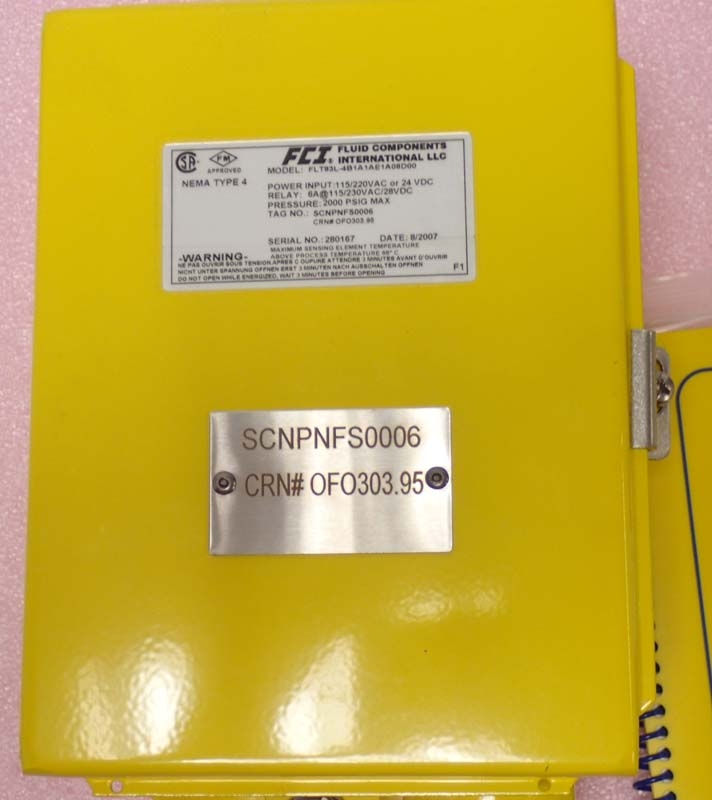

Control Circuit
Operating Temperature: -40° to +140° F&#160; [-40° to +60° C]
Input Power: Field selectable 115 ± 15 Vac or 230 ± 30 Vac, 50/60 Hz; 21 to 28 Vdc or 18 to 26 Vac; 7 watts maximum.
Relay Contacts: Field configurable dual SPDT or single DPDT rated 6 amps at 115 Vac, 240 Vac or
24 Vdc.
Output Signal: Analog DC voltage related to flow or level/interface signal and proportional to temperature.
Electrical Connection: 1 inch female NPT</p><p>&#160;Includes Manual</p>
