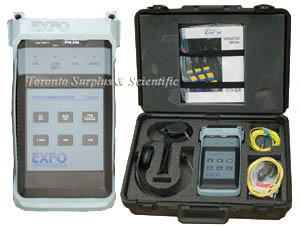

Exfo VCS-20A / VCS-20A-03BL-50 Multi-Party Talk Set 1550nm (In Stock) z1
sku57591 — low stock
$1,375.00CAD
By EXFO
<p>This Model VCS-20A-03BL-50 includes the following:</p><ul><li>VCS-20A-03BL-50 Multi-Party Talk Set 1550nm  </li><li>Manual</li><li>Case</li><li>Charger</li><li>Headset</li><li>FC/PC to FC/PC Cable</li><li>FC/PC to SC Cable</li></ul><p> </p><ul style="" text-align:=""><p>FEATURES:</…
Description
<p>This Model VCS-20A-03BL-50 includes the following:</p><ul><li>VCS-20A-03BL-50 Multi-Party Talk Set 1550nm  </li><li>Manual</li><li>Case</li><li>Charger</li><li>Headset</li><li>FC/PC to FC/PC Cable</li><li>FC/PC to SC Cable</li></ul><p> </p><ul style="" text-align:=""><p>FEATURES:</p><li>Full-duplex talk set over one fiber</li><li>Stable light source for attenuation testing</li><li>2 kHz active fiber generator / optical tone generator</li><li>Full digital voice communication</li>
SPECIFICATIONS:
<li>Wavelength: 1550 nm ±15</li><li>Spectral width: 5 nm</li><li>Emitter type: laser</li><li>Optimum fiber type: 9/125 µm</li><li>Distance range (approx.): 120 km</li><li>Dynamic range (typical): 9/125 µm: 38 dB 50/125 µm: 23 dB 62/125 µm: 21 dB</li><li>Power output (typical): -5 dB</li><li>Stability (typical): 1 hour: ±0.05 dB 24 hours: ±0.15 dB</li><li>Operating temperature +15°F to +104°F</li><li>Humidity 0-95% non-condensing</li><li>With built-in Ni-Cads: 10 hours typical from full charge</li><li>With 9 VDC alkalines: 8 hours of operation automatic transfer to alkalines when Ni-Cads are running low</li><li>With 12 VDC charger: continuous operation</li><p> </p></ul>
SPECIFICATIONS:
<li>Wavelength: 1550 nm ±15</li><li>Spectral width: 5 nm</li><li>Emitter type: laser</li><li>Optimum fiber type: 9/125 µm</li><li>Distance range (approx.): 120 km</li><li>Dynamic range (typical): 9/125 µm: 38 dB 50/125 µm: 23 dB 62/125 µm: 21 dB</li><li>Power output (typical): -5 dB</li><li>Stability (typical): 1 hour: ±0.05 dB 24 hours: ±0.15 dB</li><li>Operating temperature +15°F to +104°F</li><li>Humidity 0-95% non-condensing</li><li>With built-in Ni-Cads: 10 hours typical from full charge</li><li>With 9 VDC alkalines: 8 hours of operation automatic transfer to alkalines when Ni-Cads are running low</li><li>With 12 VDC charger: continuous operation</li><p> </p></ul>
