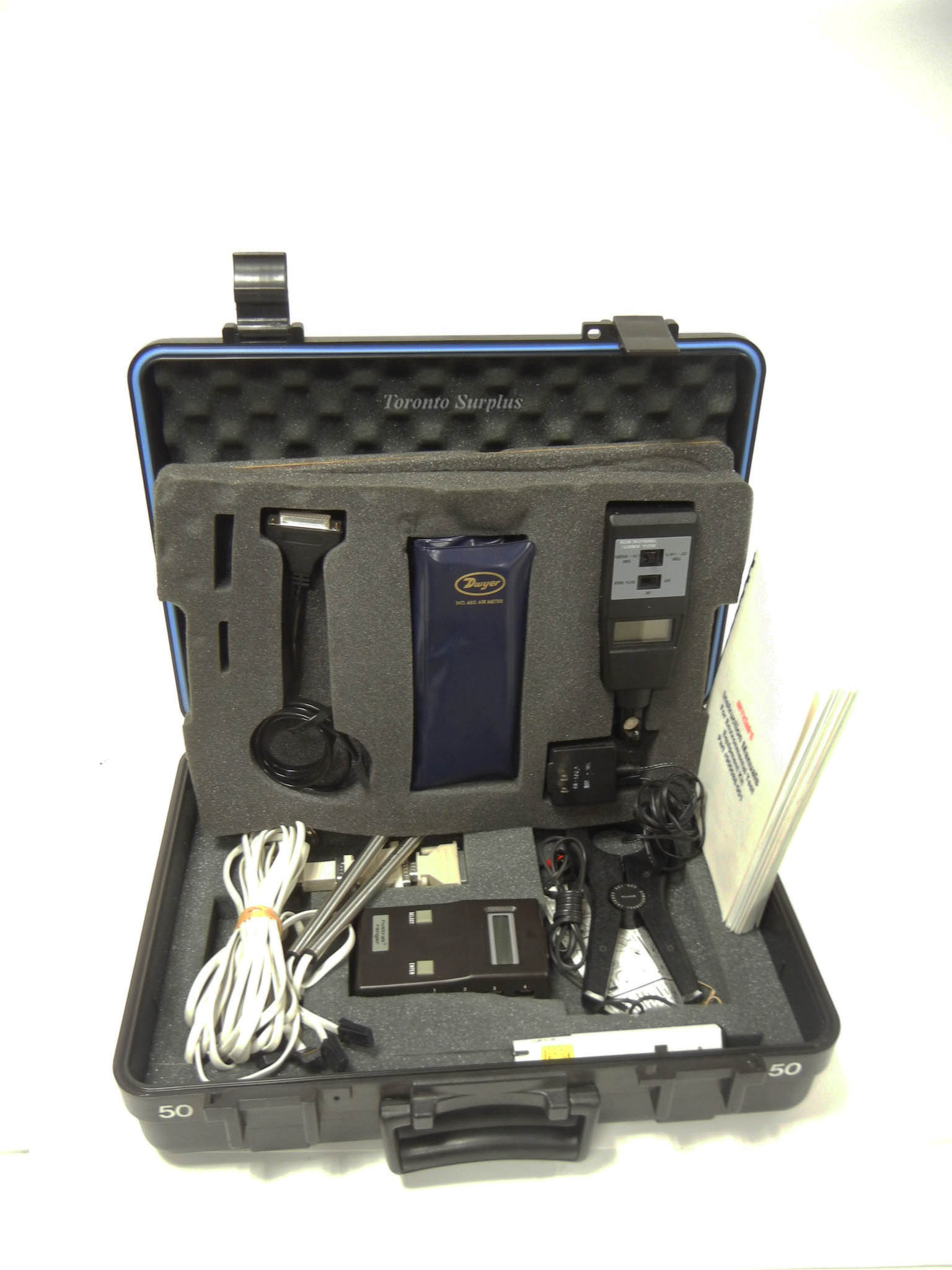

Enviromental Test Equipment Kit with Rustrak Ranger Data Logger/ Fluke 80i-600A AC Current Clamp and More!
sku90791 — low stock
$1,800.00CAD
By Dwyer
<p>This kit contains</p><p>1-Rustrak Ranger Data Logger with two POD-29/03 temperature and humidity probes, Pronto software and charger- The  Ranger 1 was one of the first electronic, graphing, logging devices and replaced the paper chart recorders which recorded temperature primarily, but also…
Description
<p>This kit contains</p><p>1-Rustrak Ranger Data Logger with two POD-29/03 temperature and humidity probes, Pronto software and charger- The  Ranger 1 was one of the first electronic, graphing, logging devices and replaced the paper chart recorders which recorded temperature primarily, but also 4-20 mA and 0-2 Volts.  Much thought went into the design of the user interface, culminating in a very simple, two button, selection operation. The DOS based software Pronto managed the data and was appreciated by customers for its ease of use, clarity and reliability (no bugs!).  A Hercules Graphics card enabled the computer to show the Pronto graphs on screen.

1-FLUKE 80i-600A AC Current Clamp, -The model 80i-600A is a clamp-on ac current probe designed to extend the current measuring capability of an ac current meter to 600 amperes. The clamp is compatible with a DMM that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio is 1000:1.</p><ul><li>    Current Range: 1A to 600A AC (2000A Peak)</li><li>    Basic Accuracy: +/- 2% of reading</li><li>    Output Signal: 1mA / A</li><li>    Frequency Range: 30Hz to 10kHz</li><li>    Working Voltage: 750V AC rms</li><li>    Maximum Conductor Size: 50.8mm (2.0 inch) diameter</li></ul><p>1-Dwyer 460 Air Meter,- Simple and quick, the No. 460 Air Meter is popular for servicing air conditioning, heat- ing and ventilating equipment. Direct read- ing velocity and static pressure scales — both low and high ranges — show supply and re- turn grille velocities, furnace draft, pressure drop across filters, etc. The 460 gives consis- tent, accurate results with no tedious calibra- tion. Rugged plastic for rough daily use. Dual velocity ranges read 260-1200 and 1000-4000 fpm; pressure ranges from .005-.09 and .05 - 1.0 inches w.c.</p><p>1-Taylor 5" Commercial Anti-Microbial Instant Read Thermometer, - Extra-large 1 3/4" dial face featuring shatterproof plastic lens with a range of  0°F to 220°F and -10°C to 100°C, stainless steel stem.</p><p>1-Extech/Markson Temperature and Humidity Meter K69539 -Battery operated, hand held unit.</p><p>1-Hannah SN011 Thermometer with Surface Probe- is a thermometer with an interchangeable probe for quick spot measurements.</p><p>Kit includes hard shell carrying case and original instruction manual.</p><p> </p>

1-FLUKE 80i-600A AC Current Clamp, -The model 80i-600A is a clamp-on ac current probe designed to extend the current measuring capability of an ac current meter to 600 amperes. The clamp is compatible with a DMM that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio is 1000:1.</p><ul><li>    Current Range: 1A to 600A AC (2000A Peak)</li><li>    Basic Accuracy: +/- 2% of reading</li><li>    Output Signal: 1mA / A</li><li>    Frequency Range: 30Hz to 10kHz</li><li>    Working Voltage: 750V AC rms</li><li>    Maximum Conductor Size: 50.8mm (2.0 inch) diameter</li></ul><p>1-Dwyer 460 Air Meter,- Simple and quick, the No. 460 Air Meter is popular for servicing air conditioning, heat- ing and ventilating equipment. Direct read- ing velocity and static pressure scales — both low and high ranges — show supply and re- turn grille velocities, furnace draft, pressure drop across filters, etc. The 460 gives consis- tent, accurate results with no tedious calibra- tion. Rugged plastic for rough daily use. Dual velocity ranges read 260-1200 and 1000-4000 fpm; pressure ranges from .005-.09 and .05 - 1.0 inches w.c.</p><p>1-Taylor 5" Commercial Anti-Microbial Instant Read Thermometer, - Extra-large 1 3/4" dial face featuring shatterproof plastic lens with a range of  0°F to 220°F and -10°C to 100°C, stainless steel stem.</p><p>1-Extech/Markson Temperature and Humidity Meter K69539 -Battery operated, hand held unit.</p><p>1-Hannah SN011 Thermometer with Surface Probe- is a thermometer with an interchangeable probe for quick spot measurements.</p><p>Kit includes hard shell carrying case and original instruction manual.</p><p> </p>
