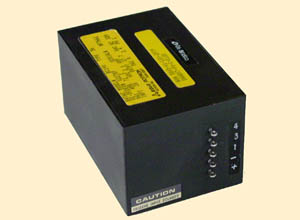

EG&G Roton Batac BC140/56, Model BC140, Type 56 P/N 022789 NSN: 5805-01-120-2979 / Inverter 28 VDC to 27.7 VAC - NEW / NOS, SEE DESCRIPTION
sku47156 in stock
$325.00CAD
By EG&G
<p>Batac is the Rotron trademark for a line of DC to AC solid state power conversion devices or inverters. The acronym stands for Battery-to-AC". These devices allow for the conversion of a DC voltage to AC voltage which is then applied to a AC motor to drive a fan blower or other device. SPECIFICA…
Description
<p>Batac is the Rotron trademark for a line of DC to AC solid state power conversion devices or inverters. The acronym stands for Battery-to-AC". These devices allow for the conversion of a DC voltage to AC voltage which is then applied to a AC motor to drive a fan blower or other device.
SPECIFICATIONS:
Input: 28 VDC 2.0 Amp
Output: 27.7 VAC 2.4 Amp max 320 Hz 1 Phase
Max ambient temp 71°C
Dimensions: 3.75"L x 2.5"W x 2 1/8"H</p><p> </p><p><span style="color: rgb(255, 0, 0);"><span style="font-size: larger;">NOTE: </span></span>These inverters have not been used, but have scratches on the case, from being moved about.</p><p> </p>
