Home›Products›Power Supplies & Power Distribution›Modular & Rack-Mount Power Supplies›dc 48 to 2.50 VDC SynQor PQ48025QGA25NNS PowerQor DC/DC Converter, Quarter Brick
dc 48 to 2.50 VDC SynQor PQ48025QGA25NNS PowerQor DC/DC Converter, Quarter Brick
sku833210+ in stock
Request a Quote
<p>Quarter Brick PowerQor Family</p><ul><li>Ultra high efficiency, up to 91% at 3.3V out</li><li>High current output, up to 40 amps</li><li>Industry standard size (1.45 x 2.3) and pin out</li><li>Low profile, only 0.4 (10.2mm) high & Low weight 1.2 oz. (34g)</li><li>No heatsink baseplate or pottin…
Description
<p>Quarter Brick PowerQor Family</p><ul><li>Ultra high efficiency, up to 91% at 3.3V out</li><li>High current output, up to 40 amps</li><li>Industry standard size (1.45 x 2.3) and pin out</li><li>Low profile, only 0.4 (10.2mm) high & Low weight 1.2 oz. (34g)</li><li>No heatsink baseplate or potting materials required
The following units are all:
Product Family: PowerQor Input: 48 VDC (35V-75V w/100V input transient)
Size: Quarter Brick Performance Series: Giga Thermal Design: Open Frame
Logic: Negative Pin Length: 0.145" Features: Standard.
Item Specifics:
<!--[if gte mso 9]><xml> <w:WordDocument> <w:View>Normal</w:View> <w:Zoom>0</w:Zoom> <w:DoNotOptimizeForBrowser /> </w:WordDocument> </xml><![endif]--><span style="font-size:10.0pt;mso-bidi-font-size:12.0pt; font-family:Arial;mso-fareast-font-family:"Times New Roman";mso-ansi-language: EN-US;mso-fareast-language:EN-US;mso-bidi-language:AR-SA">PQ48025QGA25NNS - Output: 2.50 VDC Max Output Current: 25 Amp
Professionally pulled from boards.</span>
<a href="http://staging.torontosurplus.com/tes/DataSpec/SynQor_PQ48050QGA20.pdf">Please click here for data sheet.</a>

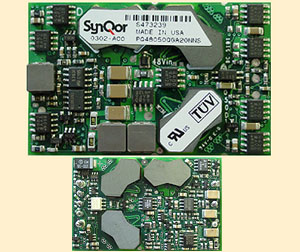

Pictured is the PQ48050QGA20NNS but they all look alike. "</li></ul>
The following units are all:
Product Family: PowerQor Input: 48 VDC (35V-75V w/100V input transient)
Size: Quarter Brick Performance Series: Giga Thermal Design: Open Frame
Logic: Negative Pin Length: 0.145" Features: Standard.
Item Specifics:
<!--[if gte mso 9]><xml> <w:WordDocument> <w:View>Normal</w:View> <w:Zoom>0</w:Zoom> <w:DoNotOptimizeForBrowser /> </w:WordDocument> </xml><![endif]--><span style="font-size:10.0pt;mso-bidi-font-size:12.0pt; font-family:Arial;mso-fareast-font-family:"Times New Roman";mso-ansi-language: EN-US;mso-fareast-language:EN-US;mso-bidi-language:AR-SA">PQ48025QGA25NNS - Output: 2.50 VDC Max Output Current: 25 Amp
Professionally pulled from boards.</span>
<a href="http://staging.torontosurplus.com/tes/DataSpec/SynQor_PQ48050QGA20.pdf">Please click here for data sheet.</a>
Pictured is the PQ48050QGA20NNS but they all look alike. "</li></ul>
