dc 48 to 2.5 VDC SynQor PQ48025HTA60NNS PowerQor DC/DC Converter, Half Brick
sku833810+ in stock
Request a Quote
Half Brick PowerQor Family Ultra high efficiency, up to 91% at 3.3Vout High current output, modules range from 20 to 60 amps Industry standard size (2.3 x 2.4) and pin out Low profile, only 0.4 (10.2mm) high & Low weight 1.9 oz. (54g) No heatsink baseplate or potting materials required Full feature …
Description
Half Brick PowerQor Family
- Ultra high efficiency, up to 91% at 3.3Vout
- High current output, modules range from 20 to 60 amps
- Industry standard size (2.3 x 2.4) and pin out
- Low profile, only 0.4 (10.2mm) high & Low weight 1.9 oz. (54g)
- No heatsink baseplate or potting materials required
- Full feature option provides current sharing
The following units are all:
Product Family: PowerQor Input: 48 VDC (35V-75V w/100V input transient)
Size: Half Brick Performance Series: Tera Thermal Design: Open Frame
Max Output Current: 60 Amp Logic: Negative
Item Specifics:
PQ48025HTA60NNS - Output: 2.5 VDC Pin Length: 0.145"
Features: Standard
Professionally pulled from boards.
Please click here for data sheet.

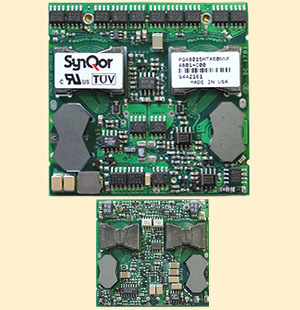

Pictured is the PQ48025HTA60NNS but they all look alike.
