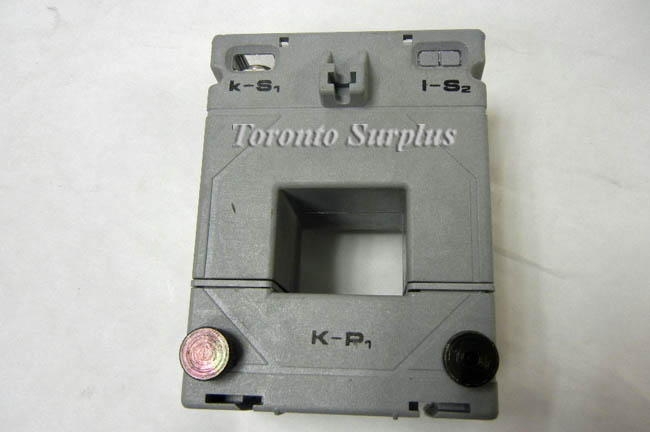

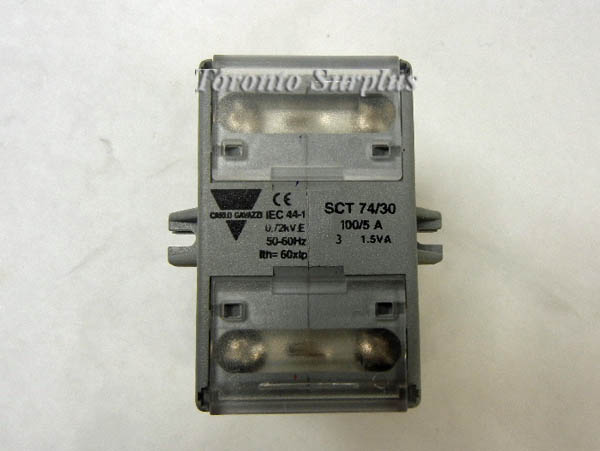

Carlo Gavazzi SCT 74/03 / SCT7430 Split Core Current Transformer 50/60Hz
sku104661 — low stock
$147.00CAD
By Carlo Gavazzi
<p>Operating frequency: 50 to 60 Hz Max. system voltage: 0.72 kV Rated insulation level : 4kVRMS, 50Hz, 1 min Short-time current rating: Ith -  60 In / I dy -  n2.5 x It Extended current rating: 120% Connection: The secondary terminals have two connections on each side. Connection with …
Description
<p>Operating frequency: 50 to 60 Hz
Max. system voltage: 0.72 kV
Rated insulation level : 4kVRMS, 50Hz, 1 min
Short-time current rating: Ith -  60 In / I dy -  n2.5 x It
Extended current rating: 120%
Connection:
The secondary terminals
have two connections on
each side. Connection with
M4 (M5) screws easy to
handle and securing low
contact resistance.
Working temperature range -20 to 45°C
Special features:
The terminal cover is fitted
for a lead seal.
This execution complies with
the VGB4 protection of
DIN57106 standard
 </p>
