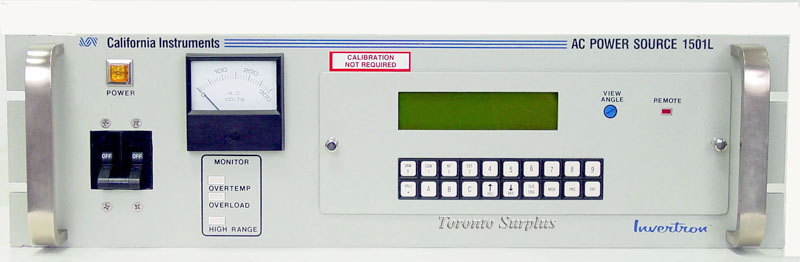

California Instruments 1501L / 1501L-1PT-160 AC Power Source, 1500 VA, 17 Hz to 5 kHz
sku79411 — low stock
$5,900.00CAD
By California Instruments
<p> Specifications:</p> <ul><li>Line Input: 115 V or 230 V single phase </li><li>Line Frequency: 47 Hz to 440 Hz</li><li>Power Output: 1,667 VA at 35°C</li><li>Output Phase: 1</li><li>Output Frequency Power Supply: 17 Hz to 5 kHz (See V-F derating for 17 Hz to 45 Hz)</li><li>PT C…
Description
<p> Specifications:</p> <ul><li>Line Input: 115 V or 230 V single phase </li><li>Line Frequency: 47 Hz to 440 Hz</li><li>Power Output: 1,667 VA at 35°C</li><li>Output Phase: 1</li><li>Output Frequency Power Supply: 17 Hz to 5 kHz (See V-F derating for 17 Hz to 45 Hz)</li><li>PT Controller Frequency: 45-550 Hz</li><li>Output Current: 12.34A at 135V</li><li>Output Voltage 0- 135VAC/ 0-270VAC</li><li>AC Noise Level: 200 mV typical</li><li>Power Factor: 0 to 1.0</li><li>Peak Repetitive Current: 5.0 times max current at 50°C
 </li></ul><p>OPTIONS:</p><p>-1PT: Single phase fast transient controller uses a fast real-time servo, instantly creating exact waveform definitions ideal for applications such as switching DC power supplies where real-time feedback and fast output settling times are critical. The -PT controller is recommended for applications that require fast transients to be programmed over time or cycles.
-160: RTCA/DO-160 test. These test routines are embedded in the -PT controller along with the standard APE language. (not available on -P controller)</p><p> </p>
 </li></ul><p>OPTIONS:</p><p>-1PT: Single phase fast transient controller uses a fast real-time servo, instantly creating exact waveform definitions ideal for applications such as switching DC power supplies where real-time feedback and fast output settling times are critical. The -PT controller is recommended for applications that require fast transients to be programmed over time or cycles.
-160: RTCA/DO-160 test. These test routines are embedded in the -PT controller along with the standard APE language. (not available on -P controller)</p><p> </p>
