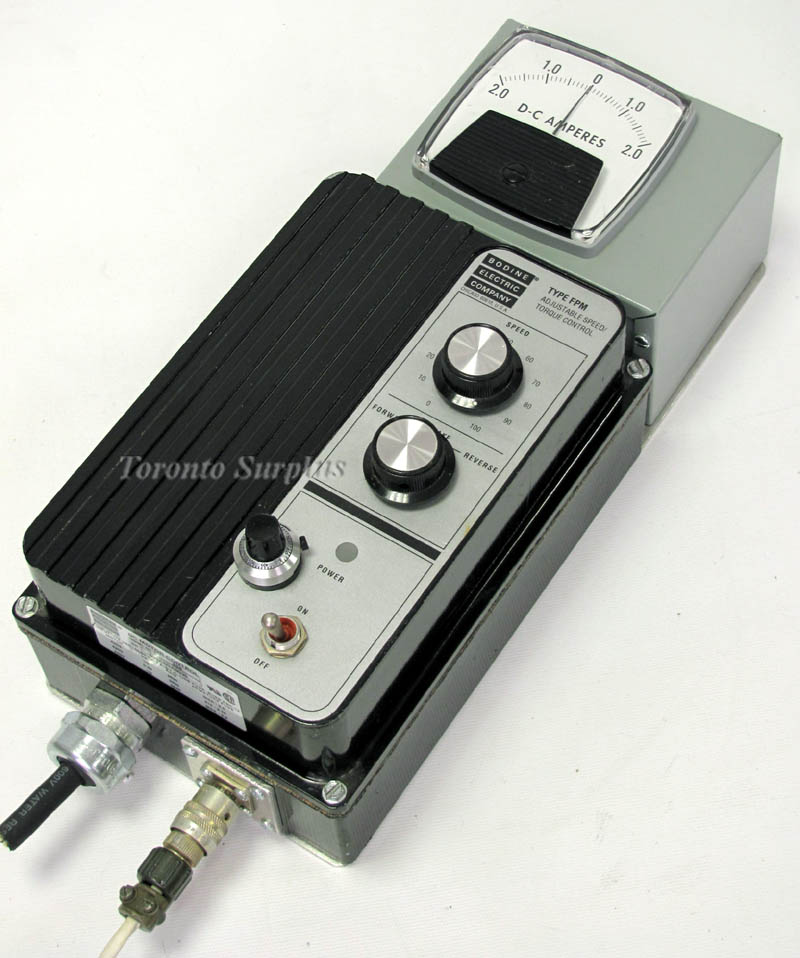

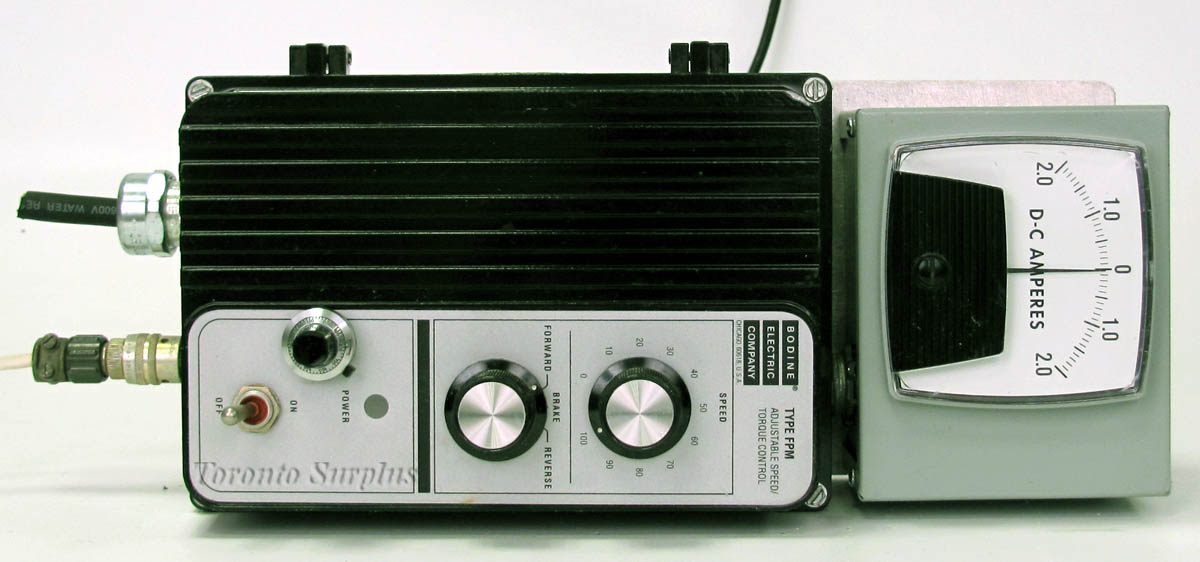

Bodine FPM 0858 Filtered SCR DC Speed and Direction Control with DC Amp Meter rm

Description

<p>&#160;</p><p>FEATURES:</p><ul><li>Operates off 115 Volt AC line.</li><li>Filtered DC output for cooler motor operation, longer brush life, lower audible noise, wider speed range.</li><li>Dip switches to easily calibrate control for different motor sizes.</li><li>Line voltage and temperature compensation minimizes speed drift.</li><li>NEMA 12 enclosure for environmental protection.</li><li>Dynamic braking for quick stops.</li><li>Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation.</li><li>Speed can be adjusted manually using speed pot mounted on enclosure.</li><li>Toggle switch on enclosure to turn AC power on/off.</li><li>Rotary switch on enclosure for direction.</li><li>Lamp on enclosure indicates AC power on.</li><li>Terminal block inside enclosure for motor connection.</li><li>Back EMF feedback maintains better than 2% speed regulation.</li><li>Fuse holders for line and motor inside enclosure (fuses included).</li></ul><p>SPECIFICATIONS:</p><p>Category &#160;&#160;&#160; Filtered SCR DC NEMA 12, Basic Speed and Direction Control FPM
HP Rating &#160;&#160;&#160; 1/3
Input Voltage (VAC 50/60 Hz) &#160;&#160;&#160; 115
Output Voltage (VDC) &#160;&#160;&#160; 0-130
Continuous Output Current (Amps) &#160;&#160;&#160; 2.3
Peak Output Current (Amps) &#160;&#160;&#160; 4.6
Form Factor &#160;&#160;&#160; 1
Product Type &#160;&#160;&#160; FPM-0858E</p><p>&#160;</p>
