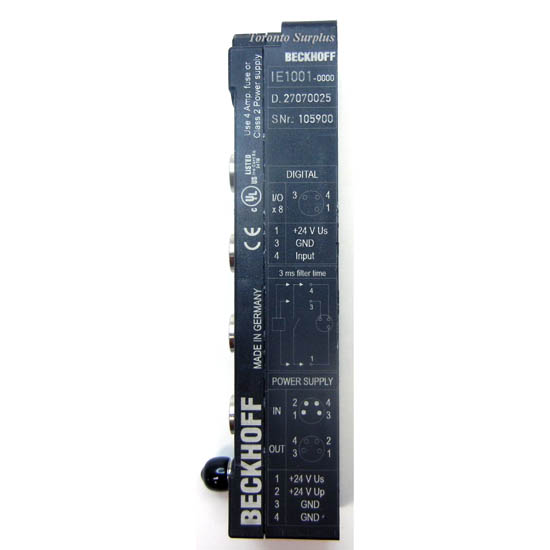

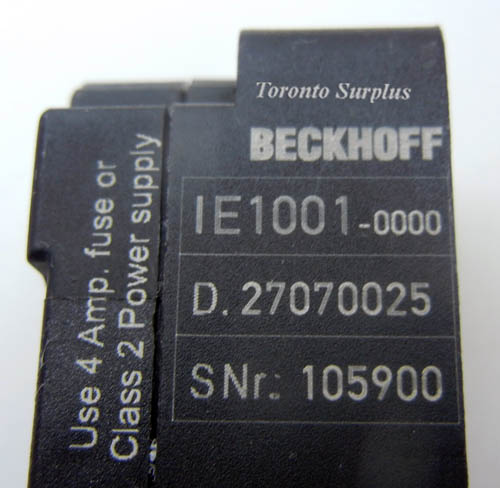

Beckhoff IE1001 8-Channel Digital Input 24 V DC
sku1152010+ in stock
$69.00CAD
By Beckhoff
<p>IE1001 8-channel digital input 24 V DC The IE1001 digital input modules acquire the binary control signals from the process level and transmit them to the higher-level automation unit. The state of the signals is indicated by light emitting diodes. The signals are optionally connected via M8 scr…
Description
<p>IE1001 8-channel digital input 24 V DC

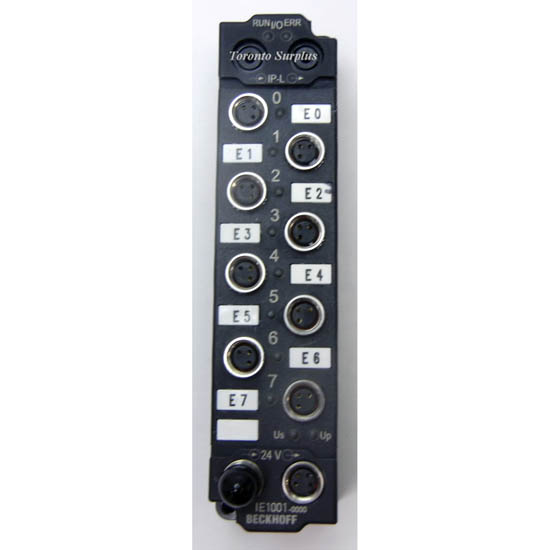

The IE1001 digital input modules acquire the binary control signals from the process level and transmit them to the higher-level automation unit. The state of the signals is indicated by light emitting diodes. The signals are optionally connected via M8 screw type connectors.</p><ul><li>Number of inputs: 8</li><li>Input connections: M8, screw type</li><li>Input filter: 3.0 ms</li><li>"0“ signal voltage: -3…+5 V (EN 61131-2, type 2)</li><li>“1“ signal voltage: 11…30 V (EN 61131-2, type 2)</li><li>Input current     typ. 6 mA (EN 61131-2, type 2)</li><li>Sensor supply     from control voltage, max. 0.5 A total, short-circuit-proof</li><li>Power supply connection     feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin</li></ul><p>5x1.5x1.25"</p><p> </p>
