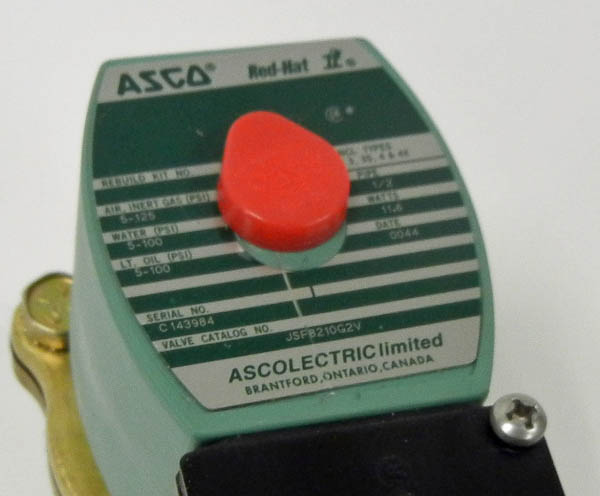

ASCO Red Hat II JSF8210G2V / 8210 Series Solenoid Brass 1/2" Valve Viton & Junction Box BNIB / NOS
sku94792 — low stock
$95.00CAD
By Asco
<p>Panel Mount Junction Box</p><p>Min Operating Pressure (Air)     5.0 PSI - 0.34 Bar     Max Operating Pressure (Air)     200 PSI - 13.8 Bar Min Operating Pressure (Water)     5.0 PSI - 0.34 Bar     Max Operating Pressure (W…
Description
<p>Panel Mount Junction Box</p><p>Min Operating Pressure (Air)     5.0 PSI - 0.34 Bar     Max Operating Pressure (Air)     200 PSI - 13.8 Bar
Min Operating Pressure (Water)     5.0 PSI - 0.34 Bar     Max Operating Pressure (Water)     150 PSI - 10.3 Bar
Min Operating Pressure (Lt Oil)     5.0 PSI - 0.34 Bar     Max Operating Pressure (Lt Oil)     135 PSI - 9.3 Bar
Technical Information
AC/DC     AC
Actuation Method     Solenoid
Body Material     Brass
Coil Class     FT
Coil Number     238212-005
Cv/Kv (Pressure Port)     4.00 Cv - 3.46 Kv
I&M Pressure Vessel     v5848R3.pdf
I&M Solenoid     V6950R6.pdf
I&M Solenoid     V6583R10_sec1.pdfViton Seal
Viton Seal
I&M Solenoid     v6583R10_sec2.pdf
Inlet Pipe Size (NPT)     1/2
Max Ambient Temperature     125 F - 52 C
Max Fluid Temperature     180 F - 82 C
Min Ambient Temperature     32 F - 0 C
Min Fluid Temperature     32 F - 0 C
Orifice Size     5/8 in
Watt Rating 60 Hz     6.10 W</p><p> </p><p> </p><p> </p><p> </p> <p class="MsoNormal"><span style="display:none;mso-hide:all"> </span></p> <p class="MsoNormal"><span style="display:none;mso-hide:all"> </span></p> <p class="MsoNormal"> </p><p> </p> <p> </p><p> </p><p> </p>
