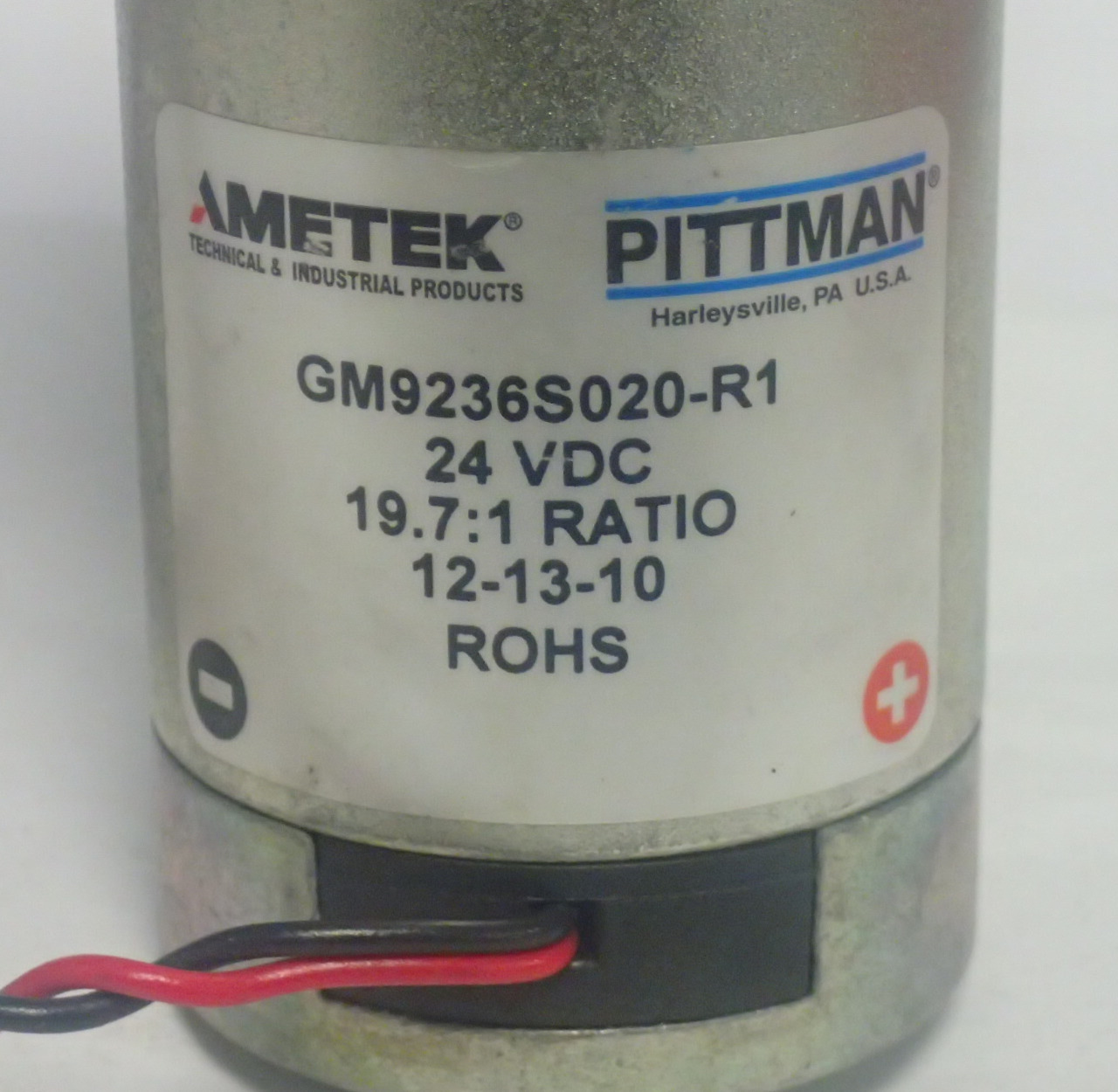

AMETEK GM9236S020-R1 Pittman GM923 Series brushed DC gearmotor

Type: Brush-commutated DC gearmotor Voltage: 24 VDC Gear Ratio: 19.7:1 No-Load Speed: Approximately 236 RPM Output Torque: About 153-160 oz-in (1.08-1.13 N·m) Power Rating: 23 W Current Draw: Up to 9.6 A Bearings: Ball bearing construction Series: Pittman GM923 Series Low-cogging permanent magnet DC motor for smooth low-speed operation. Skewed armature design to reduce magnetic cogging. Long-life copper graphite brush system. Spur gearbox with high torque output. Commonly used where precise controlled motion is required.
