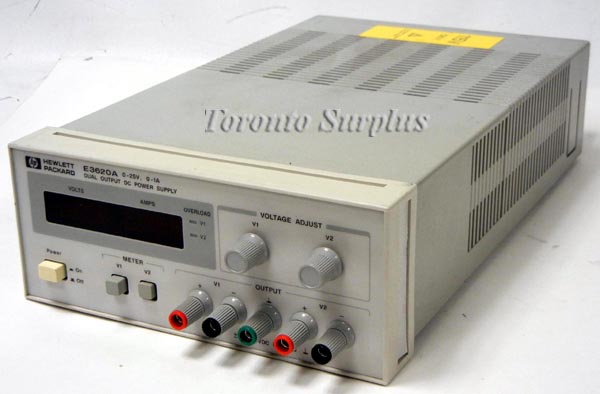

am HP E3620A / Agilent E3620A Dual Output DC Power Supply, 2 x 0-25 VDC, 0-1 Amp (In Stock) z1- SPECIAL PRICE, SEE DESCRIPTION
sku562110+ in stock
$475.00CAD
By Agilent
<p> The Agilent, dual output E3620A has two clean, reliable outputs for general purpose application; and is compact, affordable for versatile benchtop testing. Compact size; low-noise and excellent regulation; and overload indicator to monitor output.</p><ul style="" text-align:="">SPECIFICATIONS: …
Description
<p>
The Agilent, dual output E3620A has two clean, reliable outputs for general purpose application; and is compact, affordable for versatile benchtop testing. Compact size; low-noise and excellent regulation; and overload indicator to monitor output.</p><ul style="" text-align:="">SPECIFICATIONS:
Output Ratings <li>Output 1: 0 to 25 V 0 to 1 A</li><li>Output 2: 0 to 25 V 0 to 1 A</li><li>Power (max): 50 W
Ripple & Noise from 20 Hz to 20 MHz</li><li>Normal Mode Voltage rms: 350 µ:V</li><li>Peak-to-Peak: 1.5 mV
Load & Line Regulation</li><li>0.01% + 2mV
Meter Resolution</li><li>Voltage: 10 mV (0-20 V) 100 mV (>20 V)</li><li>Current: 1 mA</li></ul><p>
Complete specifications available upon request</p>
The Agilent, dual output E3620A has two clean, reliable outputs for general purpose application; and is compact, affordable for versatile benchtop testing. Compact size; low-noise and excellent regulation; and overload indicator to monitor output.</p><ul style="" text-align:="">SPECIFICATIONS:
Output Ratings <li>Output 1: 0 to 25 V 0 to 1 A</li><li>Output 2: 0 to 25 V 0 to 1 A</li><li>Power (max): 50 W
Ripple & Noise from 20 Hz to 20 MHz</li><li>Normal Mode Voltage rms: 350 µ:V</li><li>Peak-to-Peak: 1.5 mV
Load & Line Regulation</li><li>0.01% + 2mV
Meter Resolution</li><li>Voltage: 10 mV (0-20 V) 100 mV (>20 V)</li><li>Current: 1 mA</li></ul><p>
Complete specifications available upon request</p>
