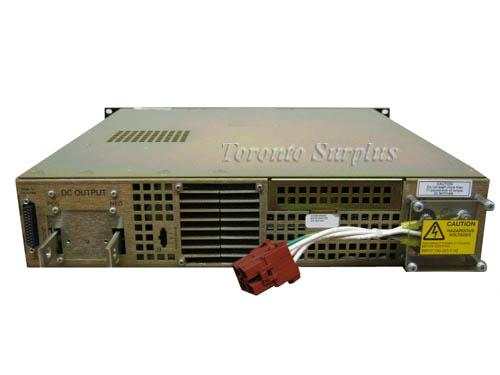

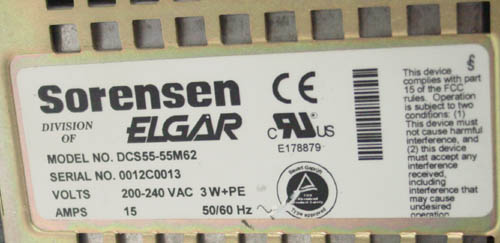

a 55V, 55A Sorensen DCS55-55M62 DC Power Supply

Description

<h3>Sorensen DCS55-55 M62 DC Power Supply</h3><p>The Sorensen DCS Series power supplies are general purpose power supplies designed specifically for laboratory test and systems applications requiring variable DC sources with good ripple and regulation characteristics. The power supplies are constant current/constant voltage supplies with an automatic crossover feature. The DCS Series models provides up to 3000 watts.</p><p>Input: 208-230 VAC, 47-63 Hz, 3 phase</p><p>Output: 0-55V, 0-55A</p><p>Options: M62-&#160; Adds extended input plug, 220 volt 3 phase input</p><p>


ADDITIONAL SPECIFICATIONS:</p><p>&#160;</p><p>&#160;
Input Power (Standard) Voltage:&#160;</p><p>208-230 VAC

Frequency:</p><p>47 to 63 Hz

Phases:
Three, 3-wire plus ground

Regulation (Line or Load)
Voltage:0.1% of max. output&#160; voltage
Current: 0.1% of max. output current

Transient Response:
A 30% step load will recover to within 2% of original value within 10ms.

Stability:
+0.05% of set point 8 hrs. after warm-upand at a fixed line, load and temp.

Total Harmonics: 2.5% max.

Resistive:
Constant Voltage (0-100%) -0 - 5k ohms
Constant Current (0-100%)- 0 - 5k ohms

Voltage:
Constant Voltage (0-100%)- 0 - 5/10 VDC
Constant Current (0-100%)- 0 - 5/10 VDC

Current:
Constant Voltage (0-100%)-0 - 1 mA
Constant Current (0-100%)-0 - 1 mA

Remote Sensing: Terminals are provided to sense output voltage at point of load.

</p><p>ENVIRONMENTAL CHARACTERISTICS:</p><p>Temperature Coefficient:
-0.02%/°C of max. output voltage rating for
voltage set point.
-0.03%/°C of max. output current rating for
current set point.

Ambient Temperature:
Operating: 0 to 50°C
Storage: -40° to 75°C</p><p>Cooling: Internal fans
&#160;</p><p>PHYSICAL CHARACTERISTICS:
Width&#160;&#160; 19in
Depth&#160;&#160; 18 in
Height&#160; 3.5 in
Weight&#160; 45lbs max

&#160;</p>
