a 30V, 330A Sorensen DHP30-330 DC Power Supply
sku64171 — low stock
$4,180.00CAD
By Sorensen
<p>Input: 200-240 VAC, 3W+PE, 3 Phase Delta or Wye Output: 0-30 V, 0-330 A Total Watt: 10kW Operating Temperature:      0°C to +50°C no derating Storage Temperature          -20°C to 70°C Cooling:       …
Description
<p>Input: 200-240 VAC, 3W+PE, 3 Phase Delta or Wye
Output: 0-30 V, 0-330 A
Total Watt: 10kW
Operating Temperature:      0°C to +50°C no derating
Storage Temperature          -20°C to 70°C
Cooling:                               Internal fan

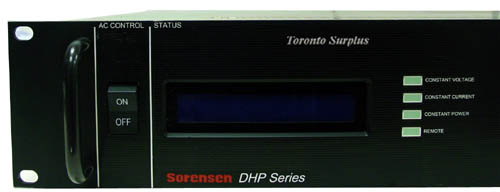

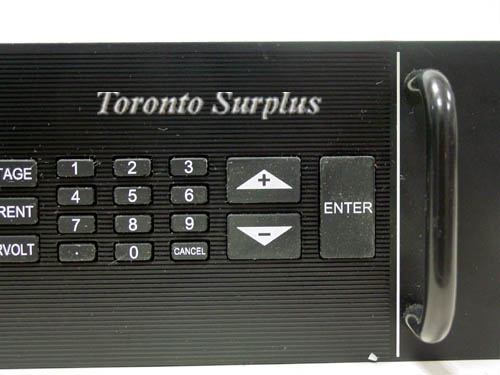

Front Panel Controls :         Keypad to select/adjust voltage, current and power with non-volatile memories to store
                                            commonly used parameters
Displays and Indicators:      Back lit LCD alphanumeric display and LEDs
Built-in Protection:
Overtemperature, brown out, turn on surge limit, slow start, overvoltage (OVP resettable without recycling power)
Remote Sense:
The maximum line drop is 3% per line or 1V for 5-15V units, 3V for all others. Line drop subtracts from the maximum available output voltage at full rated power.
Remote Control/Monitor (Rear Panel):  On/off control via contact closure, 6-120 VDC, 12-240 VAC, TTL or CMOS switch, output voltage and current monitor, (0-10 volt) OVP limit set, summary fault status
Internal Programming: 9 memories are on-board for auto-step programming. Each step can be 1 second to 99,999 seconds or 27.78 hours long.

 </p>
Output: 0-30 V, 0-330 A
Total Watt: 10kW
Operating Temperature:      0°C to +50°C no derating
Storage Temperature          -20°C to 70°C
Cooling:                               Internal fan
Front Panel Controls :         Keypad to select/adjust voltage, current and power with non-volatile memories to store
                                            commonly used parameters
Displays and Indicators:      Back lit LCD alphanumeric display and LEDs
Built-in Protection:
Overtemperature, brown out, turn on surge limit, slow start, overvoltage (OVP resettable without recycling power)
Remote Sense:
The maximum line drop is 3% per line or 1V for 5-15V units, 3V for all others. Line drop subtracts from the maximum available output voltage at full rated power.
Remote Control/Monitor (Rear Panel):  On/off control via contact closure, 6-120 VDC, 12-240 VAC, TTL or CMOS switch, output voltage and current monitor, (0-10 volt) OVP limit set, summary fault status
Internal Programming: 9 memories are on-board for auto-step programming. Each step can be 1 second to 99,999 seconds or 27.78 hours long.
