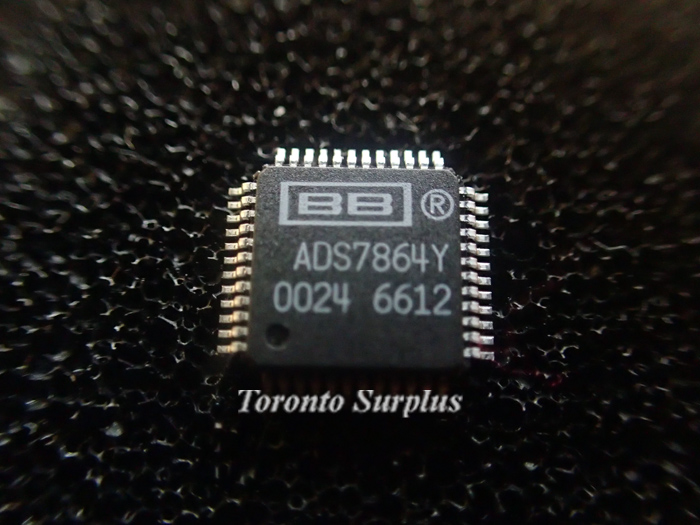

3 Texas Instruments / Burr Brown ADS7864Y Analog to Digital Converters 500kHz, 12 Bit, 6-Channel
sku118541 — low stock
Request a Quote
By Texas Instruments
<p> The ADS7864 is a dual 12-bit, 500kHz Analog-to-Digital (A/D) converter with 6 fully differential input channels grouped into three pairs for high speed simultaneous signal acquisition. Inputs to the sample-and- hold amplifiers are fully differential and are maintained differential to the in…
Description
<p> The ADS7864 is a dual 12-bit, 500kHz Analog-to-Digital (A/D) converter with 6 fully differential input
channels grouped into three pairs for high speed simultaneous signal acquisition. Inputs to the sample-and-
hold amplifiers are fully differential and are maintained differential to the input of the A/D converter.
This provides excellent common-mode rejection of 80dB at 50kHz which is important in high noise
environments.</p><p>FEATURES:</p><ul><li>6 Simultaneously Sampling Channels</li><li>Fully Differential Inputs</li><li>2µs Total Throughput Per Channel</li><li>Guaranteed No Missing Codes</li><li>Parallel Interface</li><li>1MHz Effective Sampling Rate</li><li>Low Power: 50mW</li><li>6X FIFO</li></ul>
channels grouped into three pairs for high speed simultaneous signal acquisition. Inputs to the sample-and-
hold amplifiers are fully differential and are maintained differential to the input of the A/D converter.
This provides excellent common-mode rejection of 80dB at 50kHz which is important in high noise
environments.</p><p>FEATURES:</p><ul><li>6 Simultaneously Sampling Channels</li><li>Fully Differential Inputs</li><li>2µs Total Throughput Per Channel</li><li>Guaranteed No Missing Codes</li><li>Parallel Interface</li><li>1MHz Effective Sampling Rate</li><li>Low Power: 50mW</li><li>6X FIFO</li></ul>
