Acme / Standard Power PSL-1000 Electronic Load
$ 995.00 US  Please visit: www.torontosurplus.com for further details.

$ 995.00 US

(Photo shy)

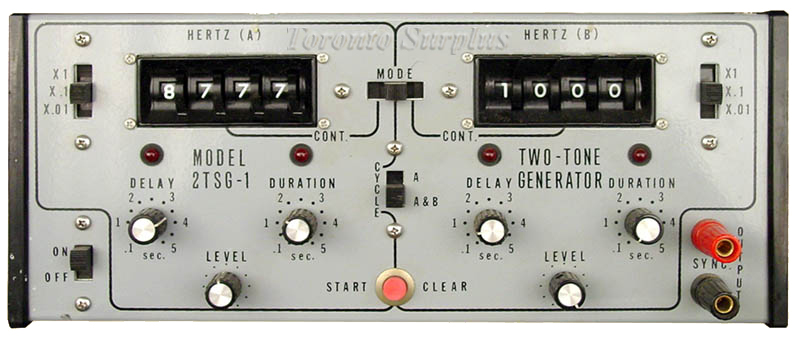

AIE 2TSG-1 Two-Tone Generator
$ 245.00 US  Please visit: www.torontosurplus.com for further details.
Click here for a larger photo, so you can see a detailed photo of theh generator.
$ 245.00 US

Aircom Electronics Portable Localizer Test-Set DDM 1001 with Rockwell Collins VIR-351
$ 995.00 US  Please visit: www.torontosurplus.com for further details.
Built by Rockwell Collins the VIR-351 has outstanding audio receiver sensitivity and needle stability. The Electronic Digital Display allows for a built in digital RMI, which provides instant display of bearings TO and radials FROM any VOR.
$ 995.00 US

Anritsu ME453C Microwave System Analyzer Receiver & Transmitter both with OPT 1, 2 & 3
Call for price  Please visit: www.torontosurplus.com for further details.

Call for price

api DDC / ILS Data Device Corp HSR103 Angle Position Indicator, Synchro Resolver Equivalent to North Atlantic 8800
 Please visit: www.torontosurplus.com for further details.

FEATURES & SPECIFICATIONS:
• Display: 6 Digit, LED
• Power: 115 VAC / 230 VAC 47-500 Hz
• Dimensions: 11.75L x 9.5W x 1.75H
• Resolution: 0.001° (6 BCD digits)
• Accuracy: ±0.005°
• Repeatability: Within 0.002°
• Angle Range (continuous rotation): Unipolar 0-359.999° and Bipolar 0-179.999°
• Signal Type: Synchro or Resolver

api North Atlantic 8500 Angle Position Indicator
Call for price  Please visit: www.torontosurplus.com for further details.
The Model 8500, API is a Synchro/Resolver-to-digital converter that performs high quality analog-to-digital conversions of Synchro or Resolver data.
The API transmits the converted digital representation of the analog data simultaneously to the following locations:

api North Atlantic 8800 Angle Position Indicator
 Please visit: www.torontosurplus.com for further details.
SEE ABOVE - We have the DDC / ILS HSR103 that is the equivalent of the North Atlantic 8800

(Photo shy)

api TMI A2623CC-28H - Angle Position Indicator
$ 75.00 US As Is  Please visit: www.torontosurplus.com for further details.
Still working but a little sloppy. Needs a gear replaced.
$ 75.00 US As Is

Associated Research 3670 Hypot III Tester AC/DC Withstand Voltage Tester with IR Test, 5 kVAC / 3 kVDC a.k.a. hipot
$ 1575.00 US  Please visit: www.torontosurplus.com for further details.
The 3670 is a manual 5 kV AC, 6 kV DC Hipot with a built-in Insulation Resistance Tester. The 3670 features an enhanced graphic LCD and can be used as a bench-top instrument or controlled through enhanced PLC Remote Control. It can also be interconnected to the HYAMP® III family of Ground Bond testers to form a complete test system that will perform AC/DC/IR Hipot and Ground Bond tests in a single DUT connection. It provides a simplified interface and the latest in technology & safety features.
It is a perfect solution for entry level AC/DC/IR Hipot testing applications.

This Tester is LIKE NEW and comes with leads. I can also burn the manual to CD for an additional $5.00.
$ 1575.00 US

Associated Research 422 Hypot Tester / Dielectric Strength Tester, 10 kVAC, 3 mA a.k.a. hipot or hi-pot
$ 425.00 US  Please visit: www.torontosurplus.com for further details.
Model 422M8
Input: 115 VAC, 1 Phase, 60 Hz
Output:10 kVAC, 203 VA
This unit is sold in tested working condition, but it is missing the lid.
$ 425.00 US

Criterion AVC-25V Dielectric Strength Tester / Hypot Tester a.k.a. hipot or hi-pot
$ 495.00 US  Please visit: www.torontosurplus.com for further details.

SPECIFICATIONS:
• Input: 120 VAC, 60 Hz, 3A

• Output: Adjustable 0-2500V ac @ 95 mA
• Transformer: Rated @ 500 VA
• Trip Current: Fixed @ 95 mA
• Voltmeter: 0-2500 VAC
• Indicators: 4 Lights (power on, high voltage on, fault and line fault)
• Leads: Two high voltage leads, one with clip, and one with retractable probe
• Size and Weight: 11"W x 6.5" x 6.5", 20 lbs

Elgar TG704A / TG-704A-3 Transient Generator
Call for Price  Please visit: www.torontosurplus.com for further details.
this is a 3 phase Transient Generator for AC supplies. This unit provides low level three phase signals to drive AC sources.

Specifications:
Frequency 60Hz +10Hz or 400Hz +100Hz. Range
Length: 15mS to 15S transient duration.
Amplitude: 58 to 190 V at output of associated supply

Call for Price

Experimental Physics Electro-Metrics EDS-250/300 High Voltage Electrostatic Discharge Simulator with DD-25-250 Gun
$ 2975.00 US  Please visit: www.torontosurplus.com for further details.
This unit is self-contained in an aluminium transport case and comes with the HV Probe and Keys to lock the case.

FEATURES:
• Meters for Discharge Voltage (kV) & Pulse Counter
• HV Knob Control
• Pulse Counter Selector
• Select from Free Running, Stop On Count
• Recharge Rate - 3 Settings

Experimental Physics EXP X High Voltage Electrostatic Discharge Simulator with Electro-Metrics D-15 Probe
Call for price  Please visit: www.torontosurplus.com for further details.
This unit is self-contained in an aluminium transport case and comes with the HV Probe and Keys to lock the case.

FEATURES:
• Meters for Discharge Voltage (kV) & Pulse Counter
• HV Knob Control
• Pulse Counter Selector
• Select from Free Running, Stop On Count or Stop On Timer
• Timer Setting - Min/Max
• Recharge Rate - Min/Max
• Sockets for HV Probe & Monitor (bnc)

Hipotronics CS-14-1218, Model 703-.5 AC Dielectric Strength Tester / Hypot Tester a.k.a. hipot or hi-pot
Call for price  Please visit: www.torontosurplus.com for further details.

• Output: Adjustable 0-3000VAC over 3 ranges @ 166 mA
• Ranges: Low: 0-600, Med: 0-1200, High: 0-3000
• Has Overload Protection and High Voltage Indicator
• High Voltage Lead with Clip

HP 16014A / Agilent 16014A Series Loss Test Adapter for 4342A Q Meter
$ 150.00 US  Please visit: www.torontosurplus.com for further details.
1 in stock
$ 150.00 US

HP 16038A / Agilent 16038A Test Fixture for 4272A Preset C Meter & 4271B LCR Meter
Call for price  Please visit: www.torontosurplus.com for further details.
Fixture only, as pictured
Call for price

HP 37203A / Agilent 37203A HP-IB / GP-IB Extender
Call for price  Please visit: www.torontosurplus.com for further details.

FEATURES:
• Extends up to 1,000 metres via coaxial cable.
• Transfer rate up to 50kb/s

HP 4952A / Agilent 4952A Protocol Analyzer with 18180 Interface (RS-232C /V.24/RS449)
$ 525.00 US  Please visit: www.torontosurplus.com for further details.
The 4952A Protocol Analyzer is a portable analyzer used for troubleshooting during installation, maintenance, and design of data communication networks and equipment. It allows you to monitor and decode data transmission, test remote facilities from your location, simulate network components, and perform bit error rate tests. They can also be used as asynchronous terminals or to install and maintain 3270 equipment, and to perform link level performance analysis.

Protocols that can be tested include Async, BSC, SDLC (NRZI), HDLC, X.25, SNA, DDCMP, and user-defined protocols. It also tests X.21 and ISDN.
Software, and Manual NOT included.
$ 525.00 US

HP 6050A / Agilent 6050A System DC Electronic Load see plug-ins page for 60504B
$ 1295.00 US  Please visit: www.torontosurplus.com for further details.
The Agilent 6050A electronic load mainframe accepts user-installable Agilent load modules for easy system configuration and future reconfiguration. The 6050A holds up to six 60501B, 60502B, and 60503B load modules (not included), or three 60504B and 60507B load modules (not included), allowing up to 1,800 watts of total maximum power (depending on plug-ins). One GPIB address is all you need for complete control and readback of all load modules within a single mainframe.

Features of 6050A only

• GPIB control of current, voltage and resistance
• GPIB readback of current, voltage, and power
• Built-in pulse waveform generation with programmable amplitude, frequency, duty cycle and slew rate
• Full protection from over-current, over-voltage, overpower, over-temperature, and reverse polarity
• Electronic calibration
• Trigger for external synchronization
• Parallel units in constant current mode for higher power
• VXI plug&play drivers

IFR Aeroflex DME 100B Ground Test Set
$ 5500.00 US  Please visit: www.torontosurplus.com for further details.

$ 5500.00 US

QuadTech Sentry 30 AC/DC/IR Hipot Tester / Dielectric Strength Tester a.k.a. hypot or hi-pot / Megger 5kV
$ 1675.00 US  Please visit: www.torontosurplus.com for further details.

FEATURES:
• AC Output Voltage: Range: 100V to 5000V AC
• Frequency: 50/60 Hz selectable
• Waveform: Sinusoidal
• AC Current Range: 0.001 to 15mA AC
• DC Output Voltage: Range: 100V to 6000V DC
• Insulation Resistance: Range: 10MW - 10GW

ROD-L M25 AC Ground Continuity Test Instrument
$ 950.00 US  Please visit: www.torontosurplus.com for further details.
Ground Test Current: 0-40 Amp
Ground Resistance: 0-0.15 Ohm
Measures AC resistance from chassis of device under test to power-cord ground lead.
Hipot interface enables interconnecting to any ROD-L test instrument to form an automatic test system.

3 in stock.

We also have a small rack housing with carry handles available that is made to house 1 ROD-L M25 & 1 M100 (sold separately).
$ 950.00 US

Sensotec SA-10D Shunt
$ 450.00 US  Please visit: www.torontosurplus.com for further details.
This SA-10D has a range of 0-5 Volts DC, and a Excitation of 10 Volts DC.
$ 450.00 US

Showa Industries Castrol Vapour Lock Indicator
$ 750.00 US  Please visit: www.torontosurplus.com for further details.
Simple to use, just put your fluid in, seal the port and test for vapour lock.
When you reach that temperature the indicator light will come on. The temperature range is 0-300 C / 0-572 F and used standard 117/220 VAC for power. It has a cover and is a compact self-contained unit.

Here is an interesting exerpt which talks about vapour lock...
However, there have been cases where Castrol has been asked by parties involved in inexplicable accidents to provide evidence on the condition of the brake fluid (the company is equipped to test for vapour lock as well as the condition of the fluid).
Says a spokesperson: "Judging from the results obtained overseas . . . some vehicles have never had the brake fluid changed from the day they left the factory."
A big problem is the fact that brake fluid is based on glycol ethers, which are strongly hydroscopic. As a result, it readily absorbs moisture from the atmosphere, which drastically reduces its vapour lock and boiling points. Another hazard is the modern car's high under-bonnet temperatures, which can quickly heat the brake fluid to vapour lock or boiling point. Turbochargers, catalytic exhaust systems and SA's high ambient temperatures also play a part. Castrol has tested vehicles pulling caravans and travelling through steep passes, and recorded brake fluid temperatures of 200deg C or more.
$ 750.00 US

Simpson AC Line Voltage Monitor
$ 99.00 US  Please visit: www.torontosurplus.com for further details.

$ 99.00 US

Tektronix A6901 Ground Isolation Monitor
Call for price  Please visit: www.torontosurplus.com for further details.
Placed between a measurement instrument and its power source the A6901 acts as an indirect grounding device, allowing floating measurements to be made with operator protection. When the isolated voltage exceeds 40 V Peak (28V RMS) the A6901 interrupts the power to the instrument, connects it to the power source grounding system and sounds an audible signal. The A6901 also tests for a functional ground between the power source and the instrument before the monitor goes into the isolation mode.

CHARACTERISTICS:
• Trip Voltage (DC): 40 V peak (28 V RMS) or ± 40 V (within 5%)
• Trip Current: 0.5 mA, 3.5 to 5 mA selectable
• Neutral-to-Ground Continuity: Between 3 and 10 V RMS (8.5 & 28.3 V p-p), 50 Hz
• DC Voltage Trip Delay: <20 ms
• Line Voltage Ranges: 90 to 128 V RMS, 180 to 250 V RMS
• Line Frequency Range: 48-66 Hz
• Max Power Consumption (No Load): 12W at 115V, 60 Hz
• Load Power: 500W max

Tektronix SIU800 SIU 800 Static Isolation Unit, P/N 070-8066-02
Call for price  Please visit: www.torontosurplus.com for further details.
The Static Isolation Unit (SIU) is a two-channel device that protects sensitive sampling head input circuitry from harmful static discharge. The SIU is installed between the DUT (Device Under Test) and sampling head and is controlled by a foot switch. When the foot switch is in the normal position (not pressed), the DUT is grounded through a 50 ohm termination resistor. This will discharge any static charge stored in the DUT. Pressing the foot switch connects the DUT to the sampling head input allowing a measurement to be made. Both channels switch simultateously when the foot switch is pressed.

The SIU will NOT protect the sampling head input from static discharge while the foot switch is pressed. you MUST be grounded through a wrist strap or similar device.

INCLUDES:
Static Isolation Unit and 12VDC Power Supply ONLY
Call for price
