Flow Technology BR30-5-C-4

Double click on above image to view full picture

More Views

  • Flow Technology BR30-5-C-4
  • Flow Technology BR30-5-C-4
  • Flow Technology BR30-5-C-4
  • Flow Technology BR30-5-C-4

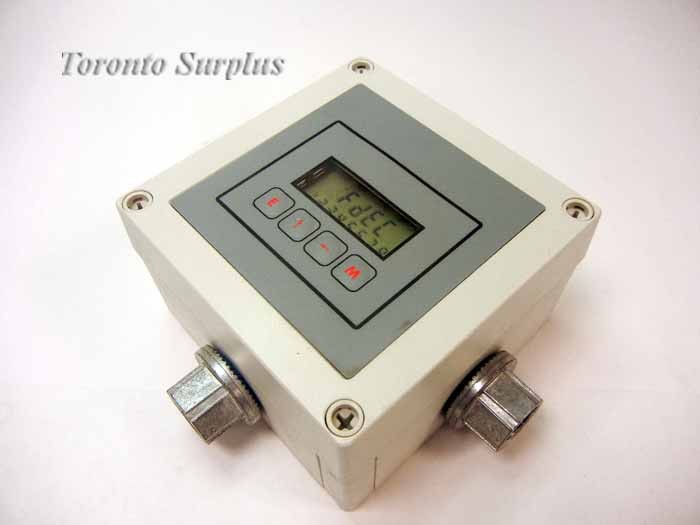

Flow Technology BR30-5-C-4 / BR3000 Series Rate/Totalizer


Part Number: sku11385
Contact for price
Add Items to Cart
Quantity in Stock: 3

Ask a Question

Product Category: SPECIALIZED FUNCTION

Product Description

Battery power and a compact size make the BR 3000 Series Rate/Totalizer a versatile local indicator. It accepts magnetic pickup, DC pulse, and switch closure inputs. Rate and total are shown simultaneously on the easy-to-read, two-line, LCD display. When the input frequency varies, linearization compensates for changing K-Factors, thereby increasing the accuracy. Scaled pulse and 4-20 mA output options allow the unit to send data to other devices. Batteries can provide all of the unit’s power or serve as a back-up when DC or 4-20 mA loop power is used. When mounted in its explosion proof enclosure, the BR 3000 can be attached directly to the conduit connection on the side of Flow Technology industrial flowmeters. Other mounting configurations allow the BR 3000 to be used in many different applications.

  • Nema 4x Enclosure
  • Loop Powered w/4-20mA
  • 20 Point Linearization

BATTERY POWERED


Supplied with 1 or 2 C size Lithium battery pack.

EXTERNAL POWER INPUT


Voltage: 8.5 to 30 VDC
Current:
Less than 5 mA
Supplied with 1 C size lithium battery
Protection: Reverse Polarity Protection on DC Power Input

LOOP POWERED


Voltage: 8.5 to 30 VDC
Supplied with 1 or 2 C size lithium battery(ies)
Protection: Reverse Polarity Protection on Current Loop
Loop Burden: 8.5V maximum
