Features Absolyte IIP 700 Ampere Hour batteries
                        In normal use, the Absolyte batteries will not generate or release hydrogen gas, will not
                        generate or release acid mist, and will not leak acid. This is because they are designed
                        differently than conventional lead acid batteries, thus they are inherently safer.

Each Distribution Module features Merlin Ferin Multi 9 Supplementary Protectors

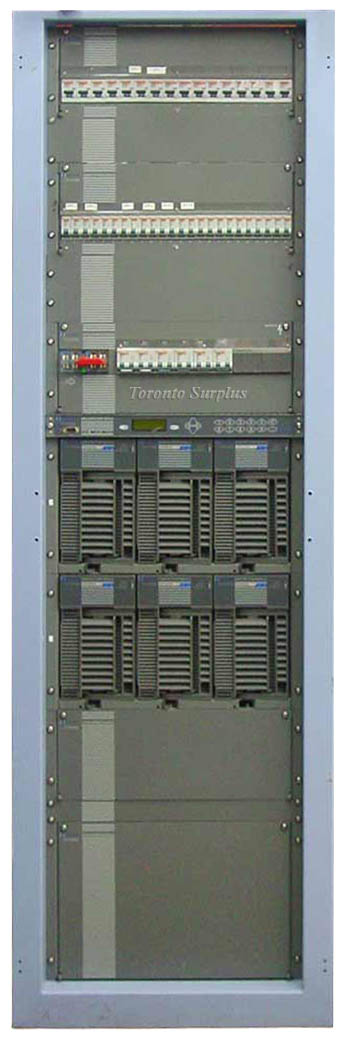

RACK 1:

DCM1600 Distribution Module
Includes: (6) Merlin Gerin Multi 9 NC100H C100A (240Vac 10kA)
                   (2) Merlin Gerin Multi 9 NC100H C80A (240Vac 10kA)
                   (2) Merlin Gerin Multi 9 NC100LS D50A (240Vac 36kA)
                   (2) Merlin Gerin Multi 9 NC100LS C50A (240Vac 36kA)
                   (4) Merlin Gerin Multi 9 NC100LS C32A (240Vac 36kA)

DCM2400 Distribution Module
Includes: (4) Merlin Gerin Multi 9 C60HC C50 (240V/415V)
                   (4) Merlin Gerin Multi 9 C60HC C40 (240V/415V)
                   (6) Merlin Gerin Multi 9 C60HC C32 (240V/415V)

ACD18 Distribution Module
Includes: (6) Merlin Gerin Multi 9 C60HB B20 (415Vac)

SM50 Supervisory Module

R2948 Rectifier Module (x6)

LVD1200 Distribution Module

DCF 04 Distribution Module

RACK 2:

DCM1600 Distribution Module
Includes: (4) Merlin Gerin Multi 9 NC100H 32A-type C (277Vac)
                   (2) Merlin Gerin Multi 9 NC100H 80A-type C (240Vac)
                   (6) Merlin Gerin Multi 9 NC100H C100A (240Vac 10kA)

DCM2400 Distribution Module
Includes: (24) Merlin Gerin Multi 9 C60N 32A-type C (277Vac)

ACD18 Distribution Module
Includes: (6) Merlin Gerin Multi 9 C60N 32A-type C (480Vac)

SM50 Supervisory Module

R2948 Rectifier Module (x3)

LVD800 Distribution Module

DCF 04 Distribution Module
